In Stock
| Parameter | Typical Value |
|---|---|
| Frequency band | 10.7–12.75 GHz |
| Return Loss | 20 dB |
| Insertion Loss | 0.25 dB |
| Low Rejected Band | DC – 9 GHz |
| Low Band Rejection | >25 dB |
| High Rejected Band | 13.75 – 16 GHz |
| Interface | SMA (f) |
| Size | 23 x 30 x 105.1 mm |
| Mass | 115 g |
| TRL | 9 |

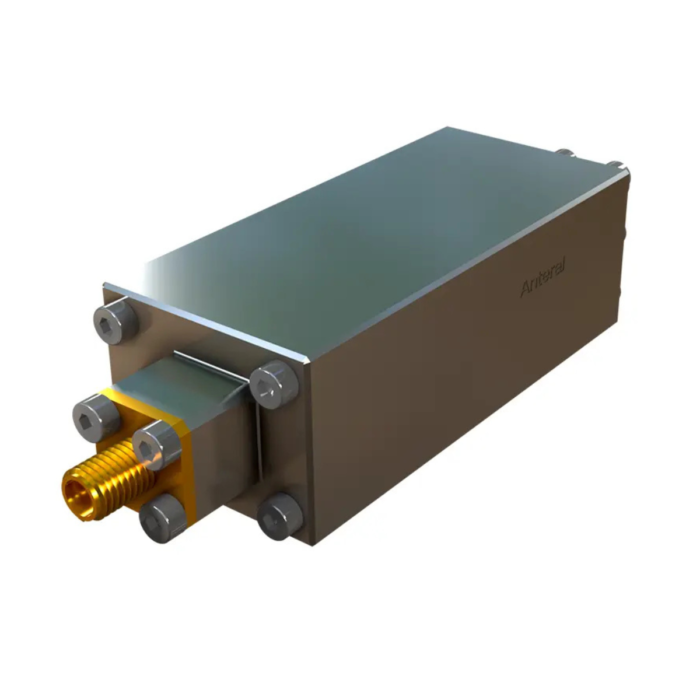

The Ku-Band SAT Filter delivers high-performance band pass filtering for satellite downlink applications. It operates between 10.7 and 12.75 GHz, rejecting over 25 dB below 9 GHz and more than 75 dB between 13.75 and 16 GHz.
Built for space-constrained systems, the filter uses a compact and lightweight design. It weighs only 115 grams and fits easily into smallsat platforms where size and mass are critical.
SMA (f) connectors provide easy integration with existing systems. With only 0.25 dB of insertion loss and 20 dB of return loss, the Ku-Band SAT Filter offers excellent performance without adding bulk. This makes it an ideal choice for modern satellite communications that demand efficiency and precision.
