Description

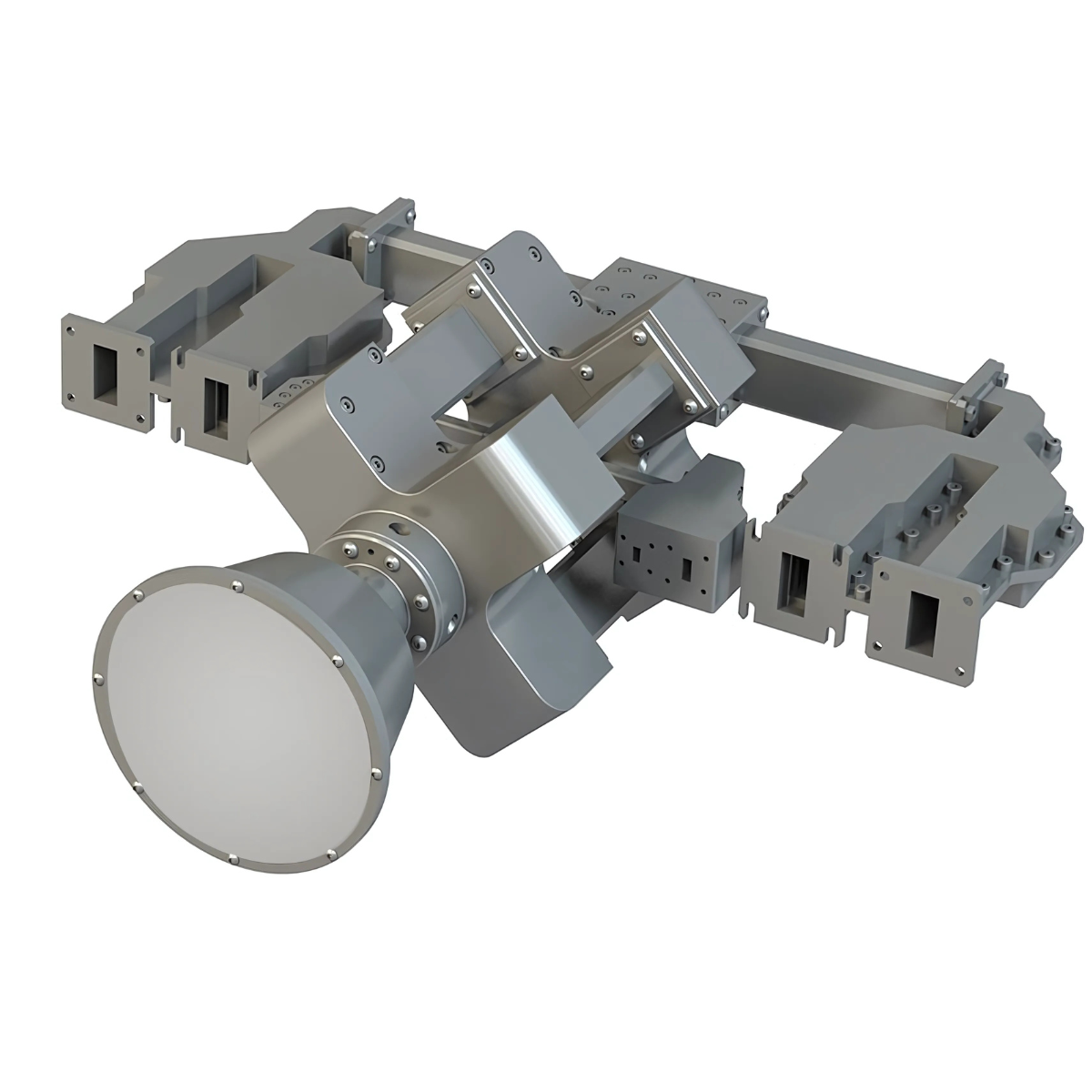

Anteral’s X/K/Ka-Band System is a high-performance, eight-port terminal for simultaneous transmission and reception across X and K/Ka bands. It’s designed to feed a 2.4-meter reflector and can be easily mounted on vehicles or fixed installations.
The system includes a dual-band antenna, a robust orthomode transducer (OMT), a high-efficiency polarizer, and four high-power diplexers. These components deliver precise signal routing and generate RHCP and LHCP with high accuracy. The diplexers ensure excellent isolation—up to 120 dB in X-band and 85 dB in K/Ka-band.
An integrated radome protects the antenna and maintains performance in harsh conditions. With a 1 dB axial ratio, low insertion loss, and solid mechanical design, this unit meets the demands of high-power SATCOM operations.
