General Specifications:
WG Size: WR187
Frequency: 3.95-5.85GHz
VSWR: 1.25 Max
Flange: Cover
Connector: Type N-F
RF Power: 200W average, 3kW peak
WGC187A-F6-C3-ITI
In Stock
Description

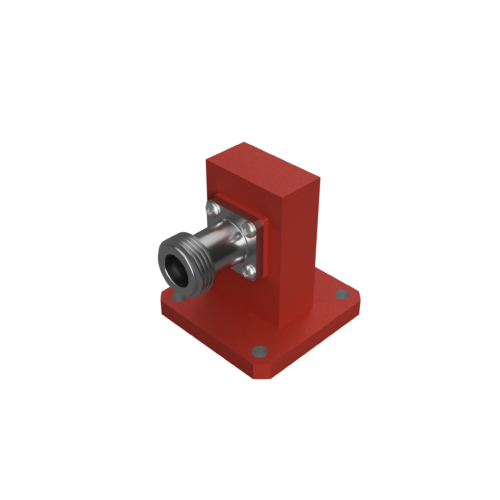

Waveguide-coax adapter WGC387A-F6-C3-ITI is constructed in aluminum with stainless steel connectors. Structured at a right-angle and comprised of WR187 waveguide with a Cover flange & Type N-F connector, WGC187A-F6-C3-ITI is rated for a frequency of 3.95-5.85 GHz. This waveguide to coax adapter has power rated at 200W CW, 3kW Peak. Insertion loss is 0.17dB, with a maximum VSWR of 1.25. The WGC187A-F6-C3-ITI waveguide-coax adapter is in-stock and can be shipped domestically and internationally upon order placement.
