Plannar and Conformal Antennas

In Stock

Plannar and Conformal Antennas

• UHF, L, S and C bands
• Ideal for launchers and sounding-rockets
• TT&C, navigation and FTS applications
Frequency Band Operation Frequency Polarization TRL
UHF 424.5–425.5 MHz Linear 9
UHF 419.5–420.5 MHz Linear 8
UHF 449.25–450.5 MHz Linear 9
LS L: 1.57–1.58 GHz
S1: 2.299–2.309 GHz
S2: 2.346–2.357 GHz
Circular
Circular
Circular
9
L 1.57–1.58 GHz Circular 8
C 5.643–5.757 GHz Linear 8
C 5.643–5.757 GHz Circular 9



Contact us for more details on this product.

Categories: ,

Description

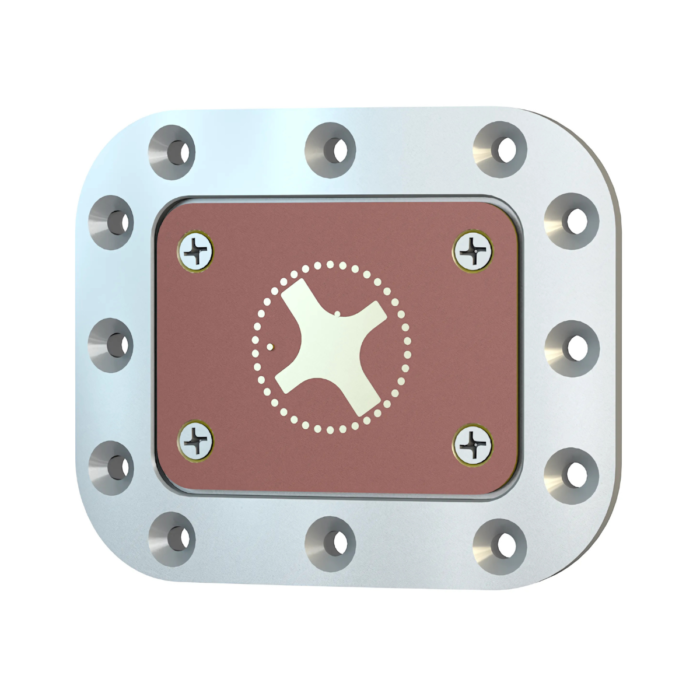

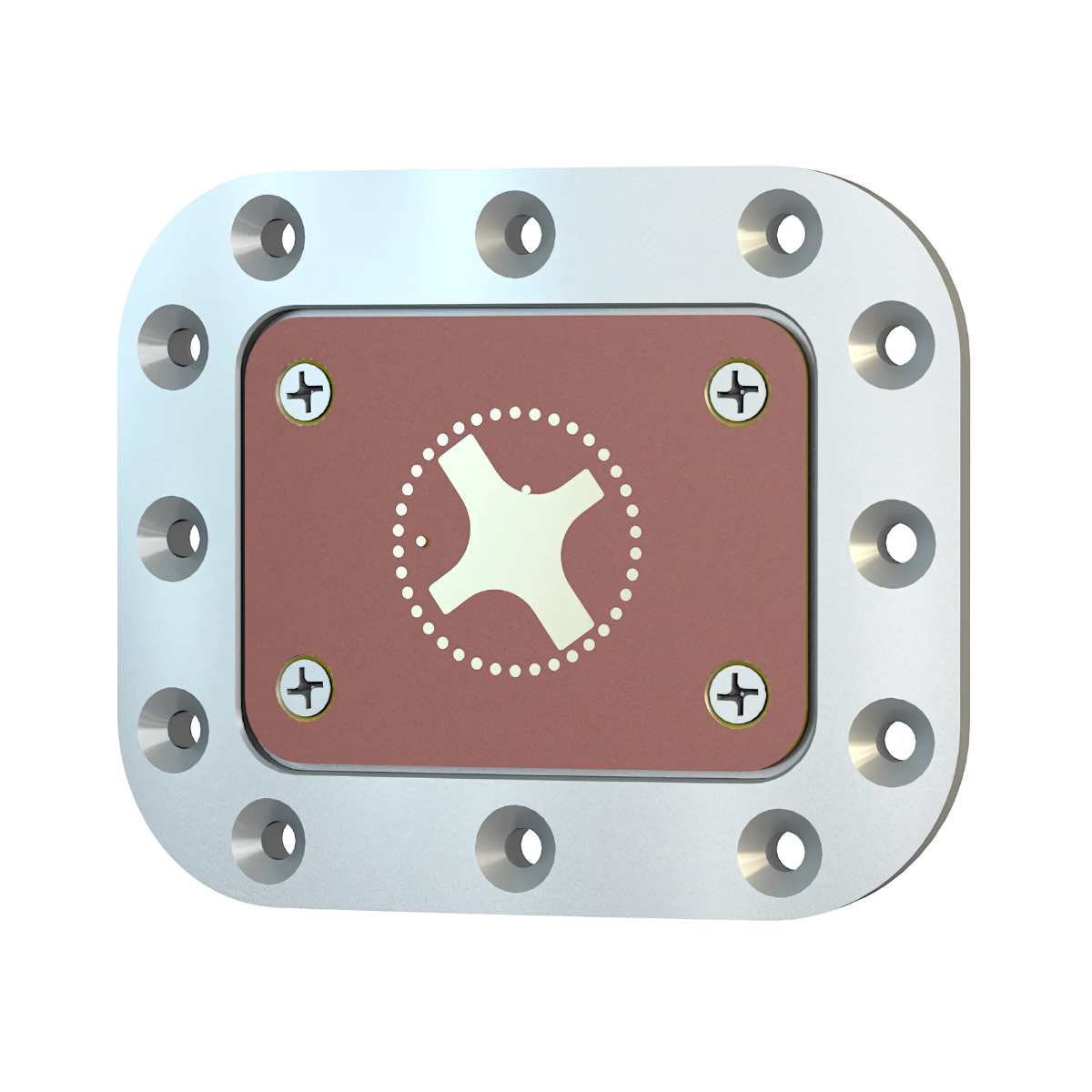

Anteral’s Planar and Conformal Antennas are designed for lightweight, low-profile integration into launchers, sounding rockets, and other high-velocity flight platforms. With frequency coverage across UHF, L, S, and C bands, these antennas are well suited for TT&C, GNSS navigation, and Flight Termination System (FTS) applications.

The current growth of the launcher and sounding rocket sector—driven by NewSpace—is creating increased demand for reusable and easy-to-manufacture antenna systems. In response, Anteral has developed a series of substrate-based, single-layer antennas. These designs are conformal, scalable in frequency, and capable of withstanding extreme environmental conditions.

Each antenna is tailored to its specific function:

  • S-Band models support telemetry and telecommand.

  • L-Band antennas are built for GNSS navigation.

  • C-Band and UHF antennas are used primarily for ground safety, including flight termination systems.

With high TRL ratings and scalable designs, these antennas are mission-ready and optimized for modern launcher architectures.
