C-Band SAT Feeding Network

In Stock

C-Band SAT Feeding Network

C-Band SAT Feeding Network
• C Band
• Very compact and lightweight design
• Transitions to SMA or TNC
• Perfect for satellites and smallsats
Parameter Typical Value
Frequency band 4.4–5 GHz
Polarization Linear (Vertical and Horizontal)
Return Loss 30 dB
Isolation 50 dB
Size 77 x 190 x 127 mm
Mass 800 g
TRL 6

Contact us for more details on this product.

Categories: ,

Description

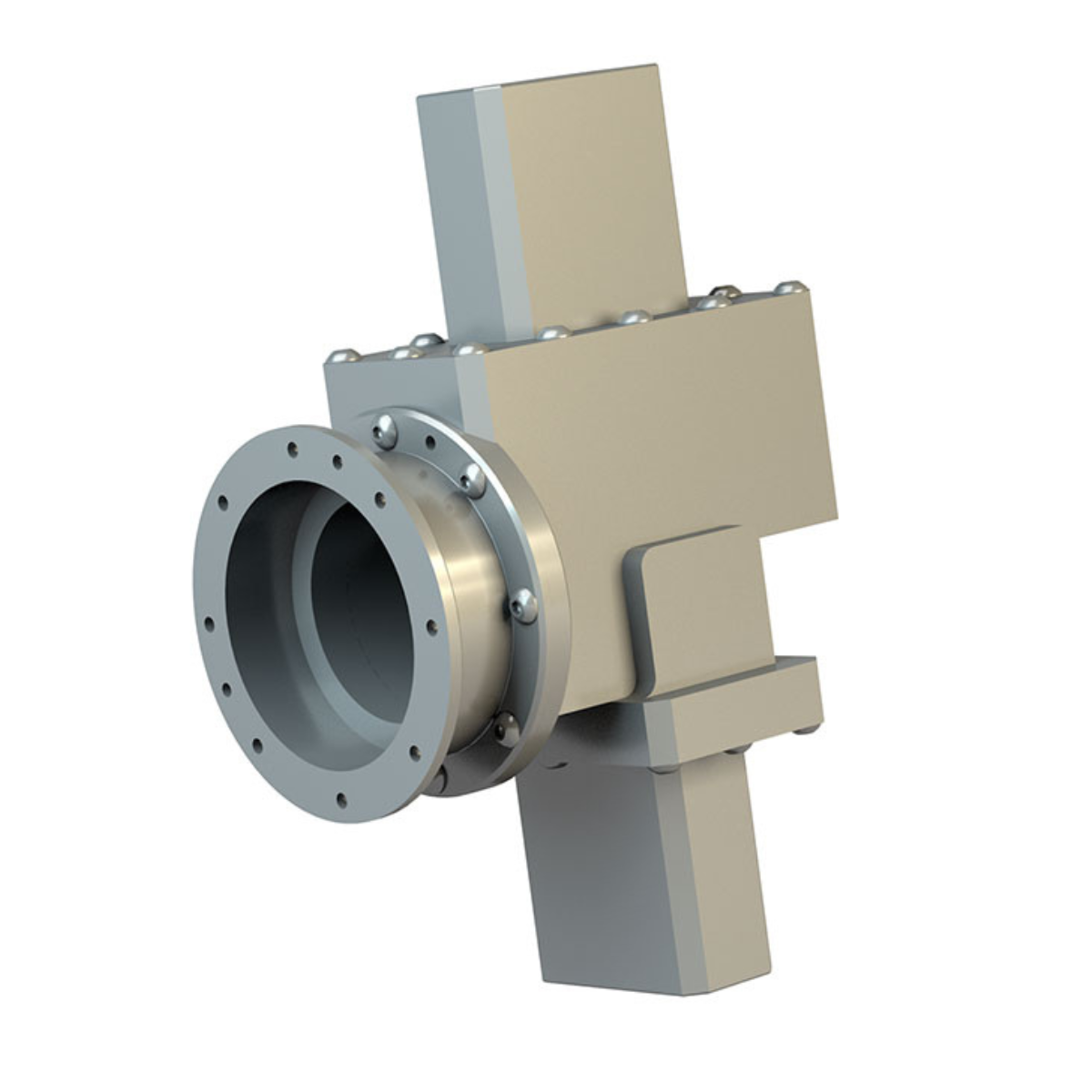

Anteral’s C-Band SAT Feeding Network is a lightweight, compact solution for dual-linear polarization feeds. It integrates an orthomode transducer (OMT) with transitions to SMA or TNC connectors, allowing flexible system integration.

Operating from 4.4 to 5 GHz, it supports vertical and horizontal polarization. With a return loss of 30 dB and isolation of 50 dB, the system ensures clean signal separation and minimal interference.

Its small size and rugged build make it ideal for satellites and smallsats, where weight and space are critical. The compact design also simplifies installation for a variety of satellite communication applications
