| Parameter | Typical Value |
|---|---|
| Frequency band | 2.025 – 2.110 GHz |
| Polarization | RHCP & LHCP |
| Return Loss | 18 dB |
| Isolation | 10 dB |
| Directivity | 6 dBi |
| Cross-Polar | 25 dB |
| Axial Ratio | 1 dB |
| Interface | SMA Connector (F) |
| Size | 96 x 96 x 7 mm |
| Mass | 150 g |
| TRL | 6 |
Create a free business account to manage your contact information, review your account’s quotes and orders, and update your preferences.
Technical data, resources and engineering actions for this exact catalog model.

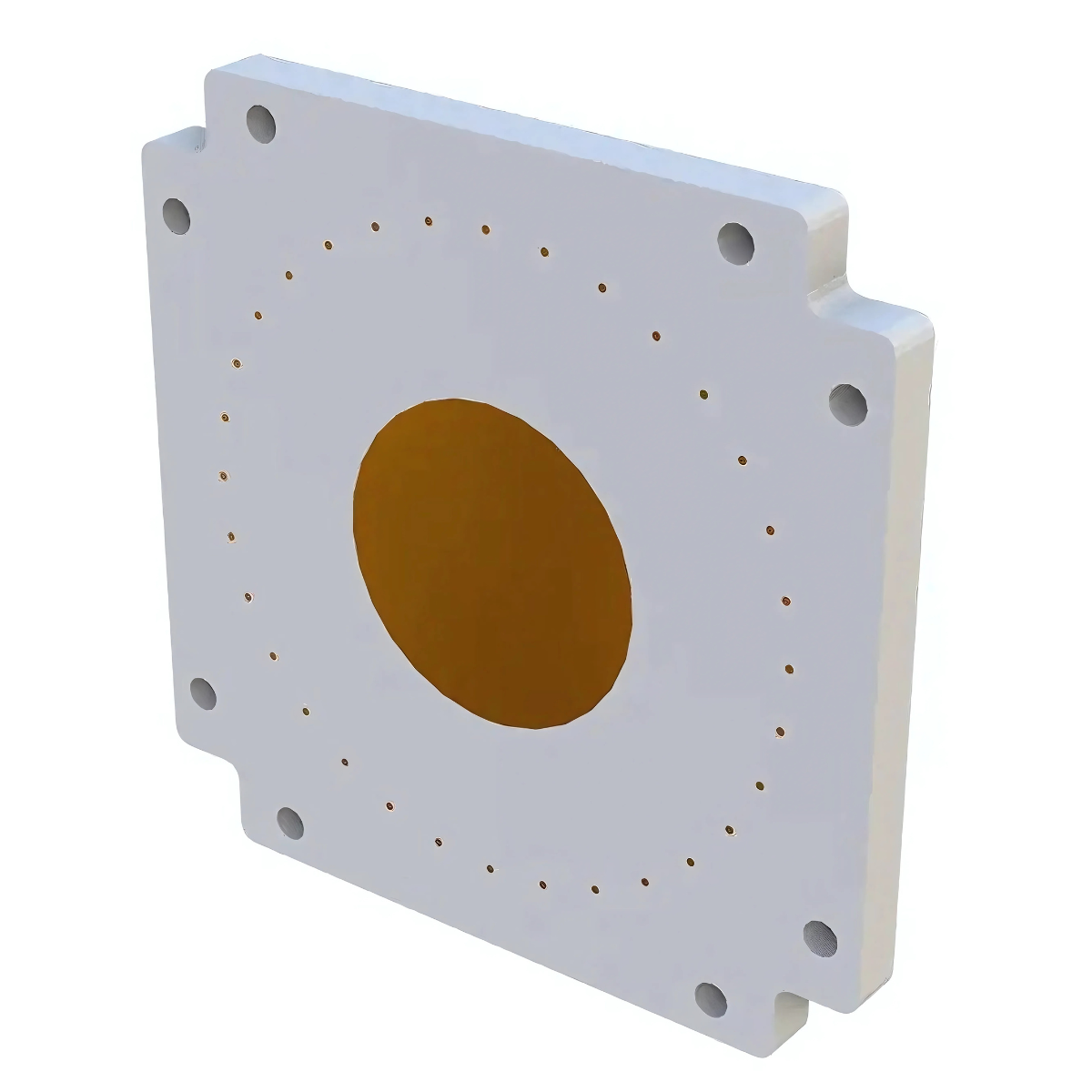

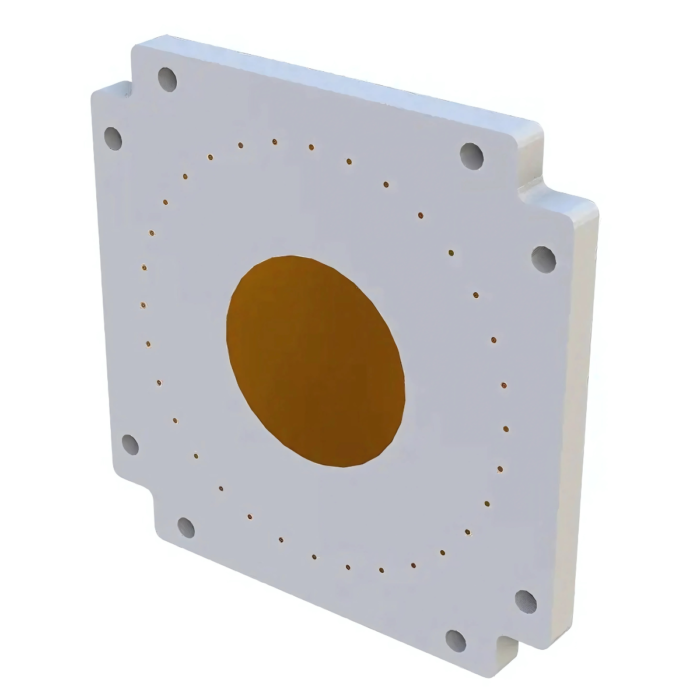

Anteral’s S-Band Telecommand DCP is a thin, lightweight antenna built for CubeSat platforms. It operates in the 2.025–2.110 GHz band and fits within a 1U footprint at just 7 mm thick.
This model supports both RHCP and LHCP with a low axial ratio of 1 dB. Its planar design helps reduce weight and simplifies integration. Engineers can also add a protective radome and a frame for structural support in harsher conditions.
This antenna offers a reliable and compact solution for telecommand links where space and efficiency are critical.
