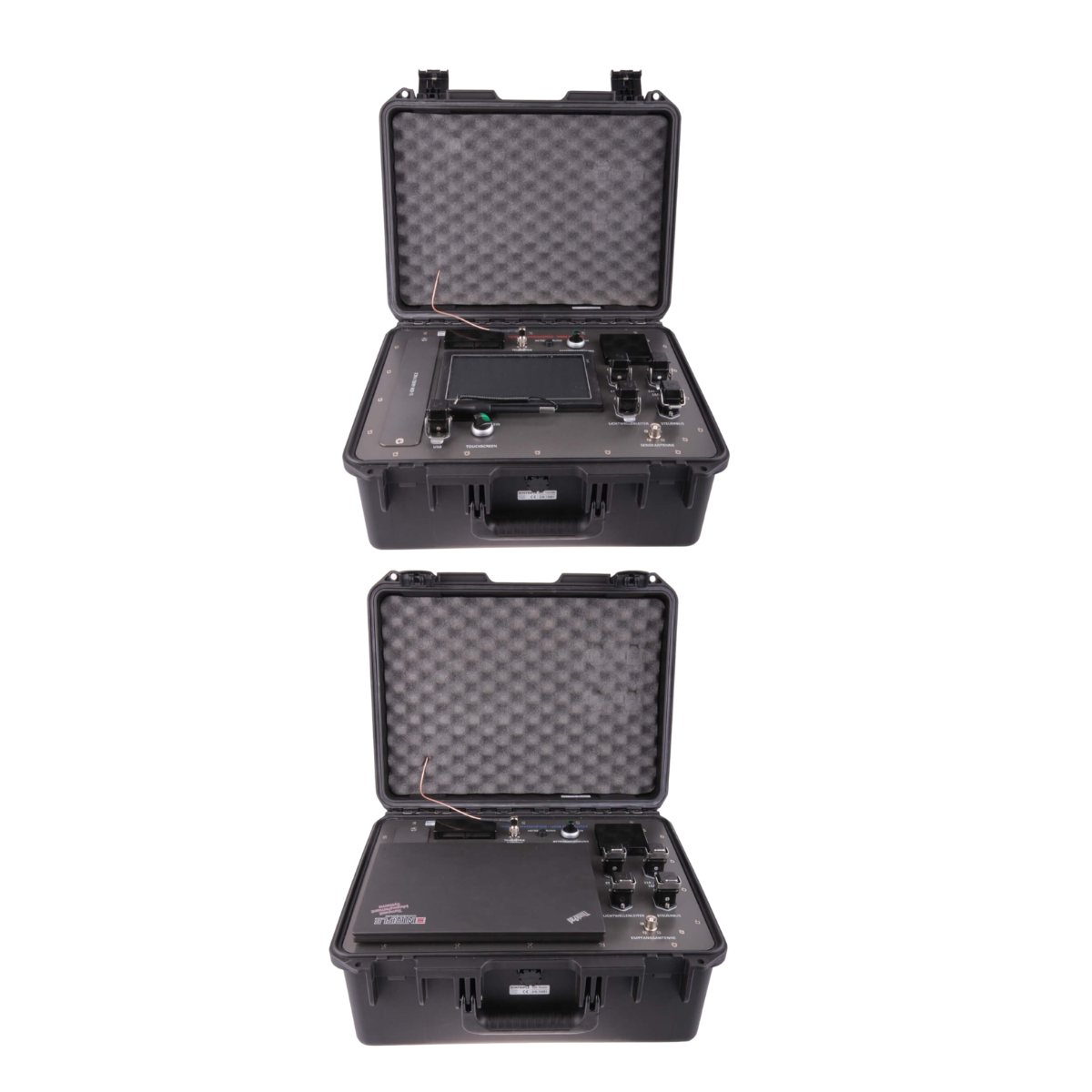

IZ906806 | 10 MHz – 3 GHz | Zoning Measurement System

In Stock

The IZ906806 Zoning Measurement System is a ruggedized facility zoning measurement solution designed for TEMPEST and shielding effectiveness testing from 10 MHz to 3 GHz, with optional expansion up to 18 GHz. Featuring fast setup, high dynamic range performance, remote-controlled operation, and compliance with SDIP-28/2 and IASG 7-01 standards, this system is ideal for military facilities, EMC laboratories, secure communication environments, and RF security measurement applications.

General Specifications:

Device Type: Zoning Measurement System
Model Number: IZ906806
Frequency Range: 10 MHz – 3 GHz (optional extension up to 18 GHz)
Dynamic Range: 30 dB above standard requirements
Measurement Speed: Approximately 1 second per frequency point
Antenna Type: Omnidirectional antennas up to 3 GHz, horn antennas for microwave frequencies
Transmitter Output Power: 4 W up to 1 GHz, 2 W up to 3 GHz
Receiver Protection: Limiter and 10 dB attenuator against ESD and accidental contact
Control Interface: Remote software-controlled operation via telemetry radio signal or time synchronization
Measurement Software: Laptop-based measurement application included
Compliance Standards: SDIP-28/2, IASG 7-01
Upgrade Capability: Shielding Effectiveness measurement expansion up to 18 GHz
Application Areas: TEMPEST testing, facility zoning measurements, EMC testing, shielding effectiveness measurements, RF security testing, military and government secure facility validation

Category:
ENGINEERING DATA / IZ906806

SPECIFICATION WORKSPACE

Technical data, resources and engineering actions for this exact catalog model.

IMPULSE IN-HOUSEIN STOCKLimited DATA COVERAGE
01
KEY SPECIFICATIONSCatalog values for IZ906806
Frequency0.01–3 GHz
Controlled operation, and compliance with SDIP-28/2 and IASG 7-01 standards, this system is ideal for milit
ENGINEERING USE: Confirm mechanical interface, environmental requirements, qualification level and application-specific limits before final design release. Published catalog values remain controlling where differences exist.

Description

Available Options

Option F02 Shielding Measurement System

Option F02

Extension to Shielding Measurement System 1 kHz to 18 GHz

Option F03 Shielding Measurement System

Option F03

Extension to Shielding Measurement System 1 kHz to 18 GHz
