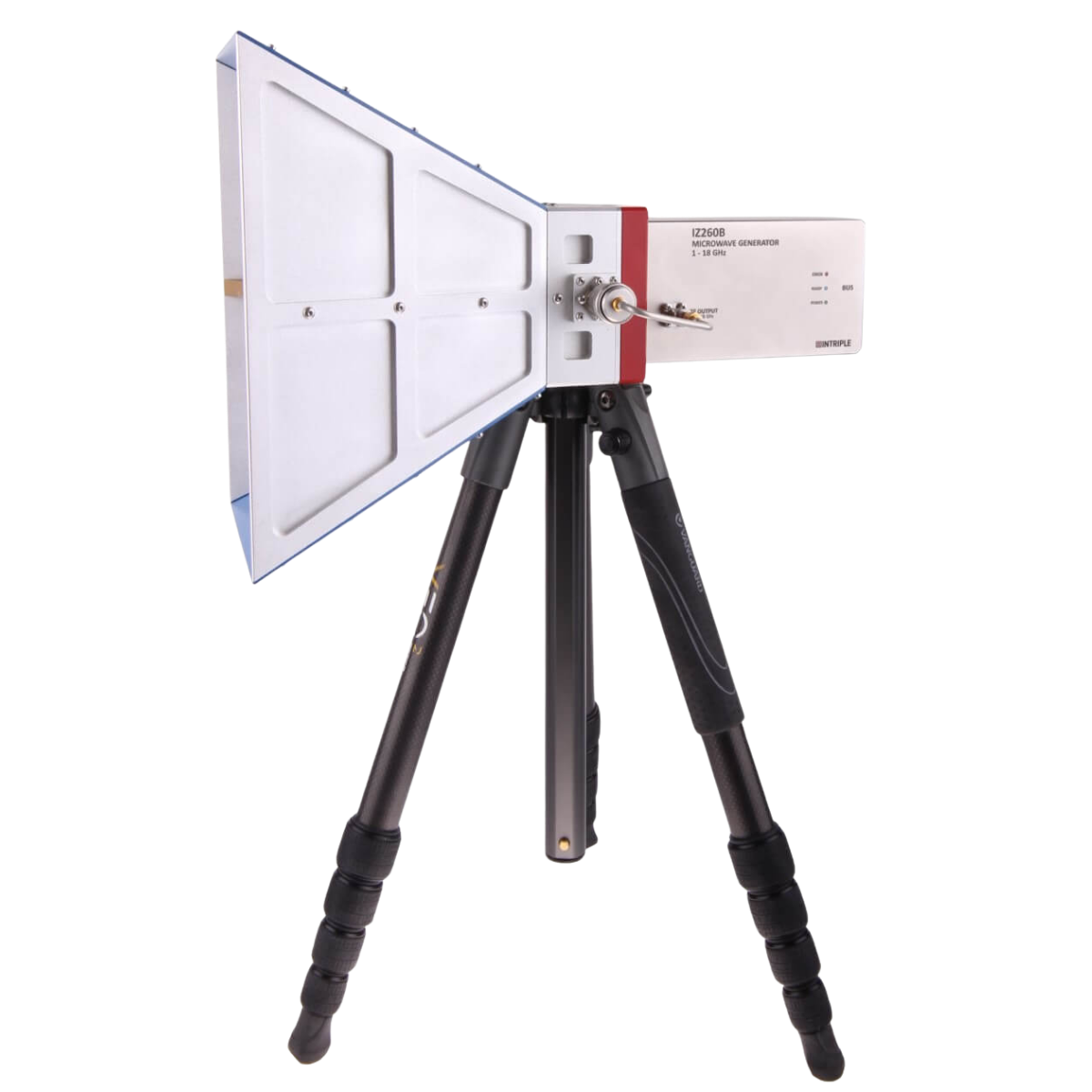

The Option F03 Shielding Measurement System is an extension module for the IZ960 shielding effectiveness measurement system, designed to expand testing capabilities from 1 kHz to 18 GHz. Featuring magnetic field sources and sensors, broadband microwave antennas, and precision RF measurement components, this system is ideal for EMC testing, shielding effectiveness evaluation, TEMPEST applications, and advanced RF compliance measurements.
General Specifications:
Device Type: Shielding Measurement System Extension
Model Number: Option F03
Frequency Range: 1 kHz – 18 GHz
System Compatibility: IZ960 Shielding Measurement System
Magnetic Field Source: IZ145C
Magnetic Field Sensor: IZ146C
Microwave Antenna Range: 1 – 18 GHz
Signal Generator: IZ260B
Down Converter: IZ255B
Measurement Capability: Shielding effectiveness and EMC measurements
Connection Type: Fiber optic synchronized measurement system
Included Accessories: RF cables, accessories, transit case
Application Areas: TEMPEST testing, shielding effectiveness measurements, EMC compliance testing, RF system analysis, laboratory measurements
Compliance Standards: SDIP-29/2, IASG 07-02, IEEE Std 299, EN 50147-1, MIL-STD 188-125
