In Stock
| Parameter | Typical Value |
|---|---|
| Frequency band – Band 1 | 7.25–7.75 GHz |
| Frequency band – Band 2 | 7.9–8.4 GHz |
| Polarization | RHCP & LHCP |
| Axial Ratio | 0.5 dB |
| Gain | 20 dBi |
| Crosspolar Level | 25 dB |
| Return Loss | 25 dB |
| Isolation RX–TX & TX–RX | 110 dB |
| Ports | WR-112 |
| Size | 285 x 182 x 407 mm |
| Mass | 3 kg |

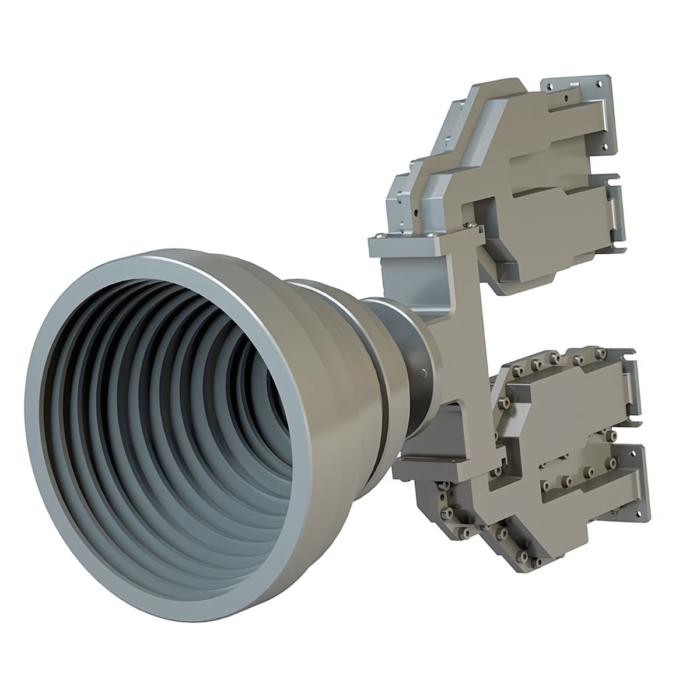

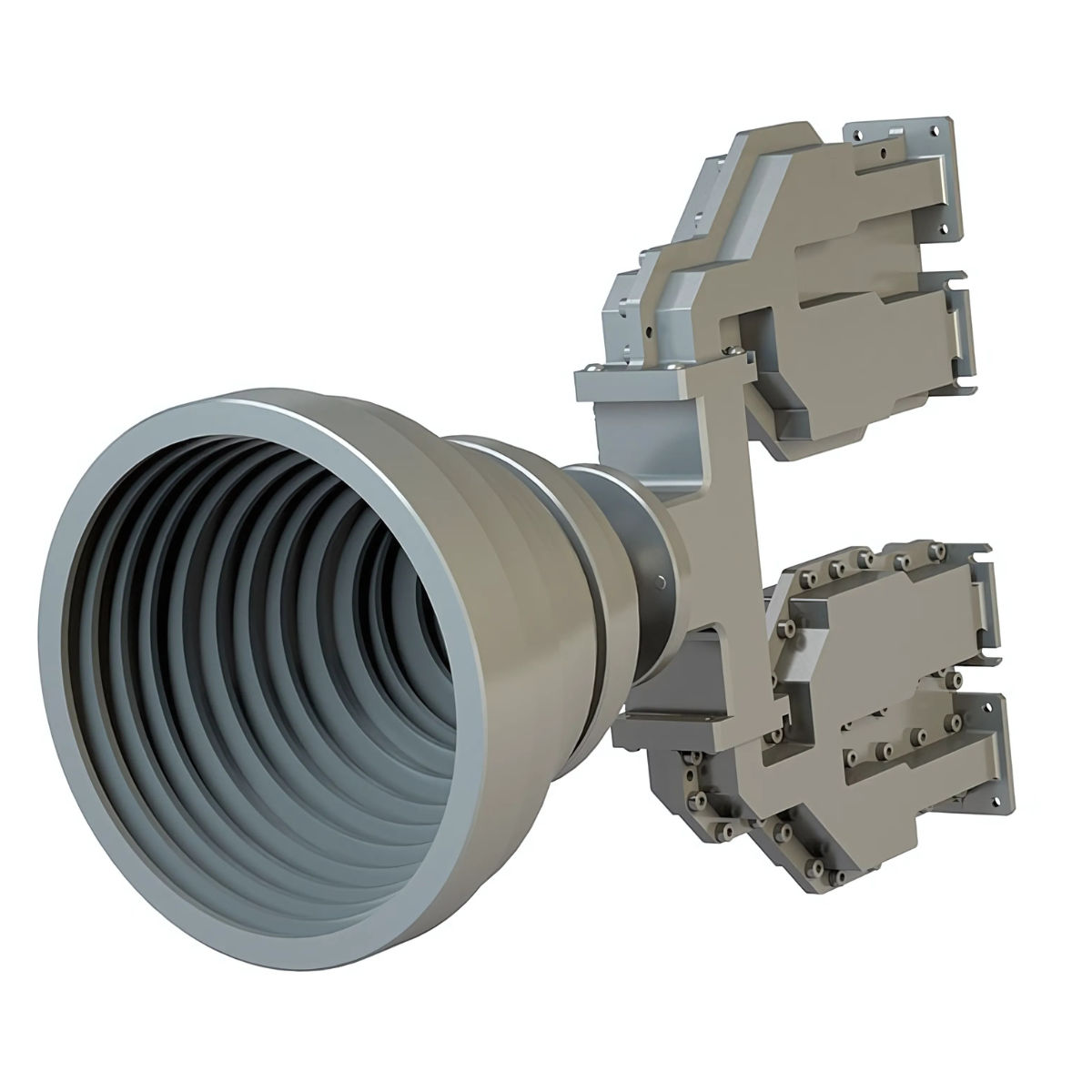

Anteral’s X-Band System is engineered to illuminate large satellite reflectors, specifically dishes up to 15 meters in diameter. It supports dual-circular polarization across typical X-band frequencies and is built to deliver high-power RF performance.
The system includes a high-efficiency corrugated horn antenna, a precision polarizer, and two diplexers. It features four ports and achieves key performance metrics: an axial ratio below 0.5 dB, 110 dB of isolation between RX and TX, and 25 dB return loss.
This configuration provides strong cross-polar suppression and 20 dBi of gain, making it an ideal feed system for satellite ground stations requiring robust, high-performance X-band capability.
