In Stock
| Parameter | Typical Value |
|---|---|
| Frequency band | 8.0–8.4 GHz |
| Polarization | RHCP |
| Return Loss | 18 dB |
| Directivity | 8.5 dBi |
| Cross-Polar | 15 dB |
| Axial Ratio | 5 dB |
| Interface | SMA Connector (F) |
| Size | 46 x 46 x 18.9 mm |
| Mass | 196 g |
| TRL | 6 |
Create a free business account to manage your contact information, review your account’s quotes and orders, and update your preferences.
Technical data, resources and engineering actions for this exact catalog model.

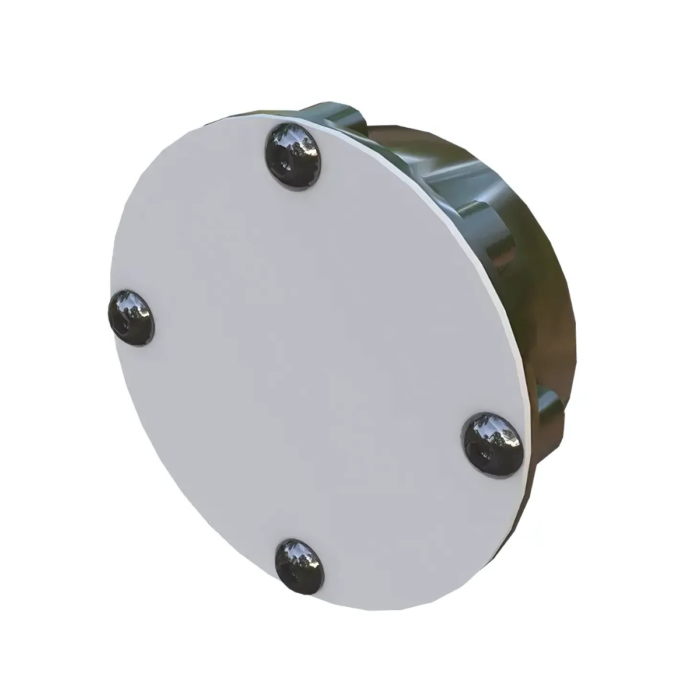

Anteral’s X-Band SCP antenna provides a compact, lightweight solution for satellite downlink applications. Designed with planar technology, it is ideal for smallsats, fitting neatly within a 1U cubesat structure.
This antenna covers the X-Band with right-handed circular polarization (RHCP), offering strong signal performance in a minimal footprint. It includes a protective radome to shield against harsh space environments and an integrated frame for secure mounting.
With low axial ratio, high directivity, and a durable design, the X-Band SCP is a reliable choice for NewSpace missions where every gram and millimeter matters.
