X-Band SAT System

In Stock

X-Band SAT System

• X band
• High-power applications
• Compact size
• Designed for illuminating reflectors
• Perfect for satellites and smalsats
Parameter Typical Value
Frequency band – Pass band RX 7.145–7.19 GHz
Frequency band – Pass band TX 8.4–8.45 GHz
Polarization RHCP or LHCP
Axial Ratio 0.3 dB
Return Loss 30 dB
Directivity 14.5 dBi
Cross-Polar Level -30 dB
Size 125 x 125 x 245 mm
Mass ~500 g
TRL 6

Contact us for more details on this product.

Request a Quote
Categories: ,
ENGINEERING DATA / X-BAND

SPECIFICATION WORKSPACE

Technical data, resources and engineering actions for this exact catalog model.

ANTERALIN STOCKLimited DATA COVERAGE
01
KEY SPECIFICATIONSCatalog values for X-Band
Frequency7.145–7.19 GHz
Size• Designed for illuminating reflectors
PolarizationRHCP or LHCP
ENGINEERING USE: Confirm mechanical interface, environmental requirements, qualification level and application-specific limits before final design release. Published catalog values remain controlling where differences exist.
03 / NEXT ACTIONMOVE FROM PART DATA TO AN ENGINEERING DECISION.
COMPARECompare This ProductOpen the 4-product SpecMatch comparison → ALTERNATIVESFind Equivalent PartsUse CrossMatch against this model → MODIFY / BUILDCustom RequirementSend an engineering requirement →
PROCUREMENTAdd to RFQ
ADD TO RFQ

Description

Anteral’s X-Band SAT System is designed specifically for illuminating reflectors with circular polarization. To meet this application, the system delivers low directivity, low side-lobe levels, and low cross-polarization levels, ensuring a clean and focused radiation pattern.

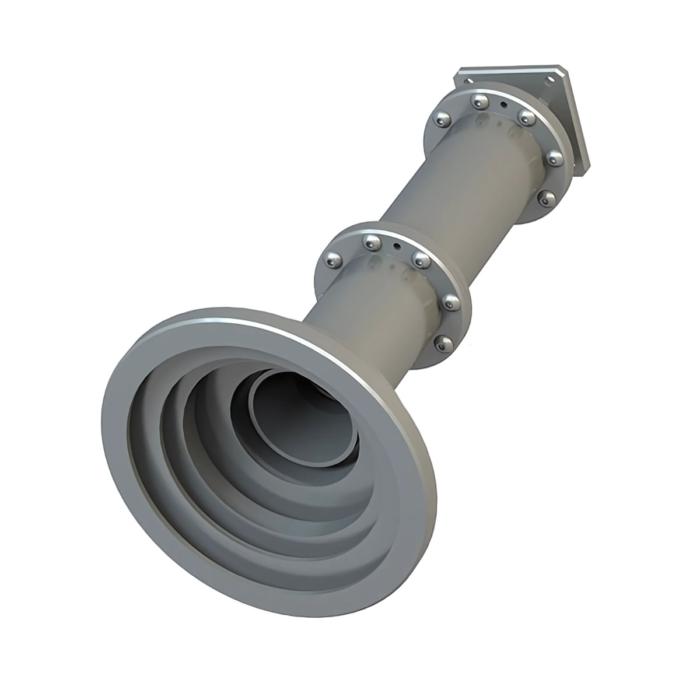

The system integrates a corrugated antenna, a polarizer, and a transition section. It supports either RHCP or LHCP operation. Optimized for high-power use, the X-Band SAT System maintains a lightweight, compact design ideal for satellite and smallsat platforms where space and mass are critical constraints.

With a directivity of 14.5 dBi, a cross-polar level of -30 dB, and an axial ratio of just 0.3 dB, the system offers excellent performance for demanding space applications.
