WGC90A-F6-C3-ITI

WGC90A-F6-C3-ITI

In Stock

In Stock & Free shipping for domestic orders!

Quantities of 9+, please request a quote for bulk pricing.

General Specifications:

WG Size: WR90
Frequency: 8.20-12.4GHz
VSWR: 1.15 Max
Flange: COVER
Connector: Type N-F
RF Power: 50W average, 1kW peak

Click to view datasheet

Request a Quote
Category:
ENGINEERING DATA / WGC90A-F6-C3-ITI

SPECIFICATION WORKSPACE

Technical data, resources and engineering actions for this exact catalog model.

IMPULSE IN-HOUSEIN STOCKHigh DATA COVERAGE
01
KEY SPECIFICATIONSCatalog values for WGC90A-F6-C3-ITI
Frequency8.2–12.4 GHz
WaveguideWR90
ConnectorType N-F
VSWR Max1.15:1
Average Power50 W
Peak Power1,000 W
Insertion Lossis 0.2dB, with a maximum VSWR of 1.15. The WGC90A-F6-C3-ITI waveguide-coax adapter is in-stock and c
FlangeCOVER
SizeWR90
ENGINEERING USE: Confirm mechanical interface, environmental requirements, qualification level and application-specific limits before final design release. Published catalog values remain controlling where differences exist.
03 / NEXT ACTIONMOVE FROM PART DATA TO AN ENGINEERING DECISION.
COMPARECompare This ProductOpen the 4-product SpecMatch comparison → ALTERNATIVESFind Equivalent PartsUse CrossMatch against this model → MODIFY / BUILDCustom RequirementSend an engineering requirement →
PROCUREMENTAdd to RFQ
ADD TO RFQ

Description

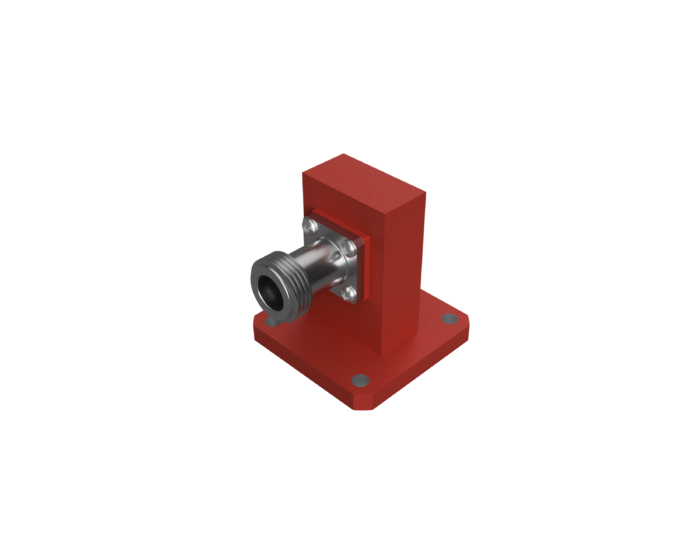

Waveguide-coax adapter WGC90A-F6-C3-ITI is constructed in aluminum with a stainless steel connector. Structured at a right-angle and comprised of WR90 waveguide with COVER flange & Type N-F connector, WGC90A-F6-C3-ITI is rated for a frequency of 8.20-12.4 GHz. This waveguide to coax adapter has power rated at 50W CW, 1kW Peak. Insertion loss is 0.2dB, with a maximum VSWR of 1.15. The WGC90A-F6-C3-ITI waveguide-coax adapter is in-stock and can be shipped domestically and internationally upon order placement.
