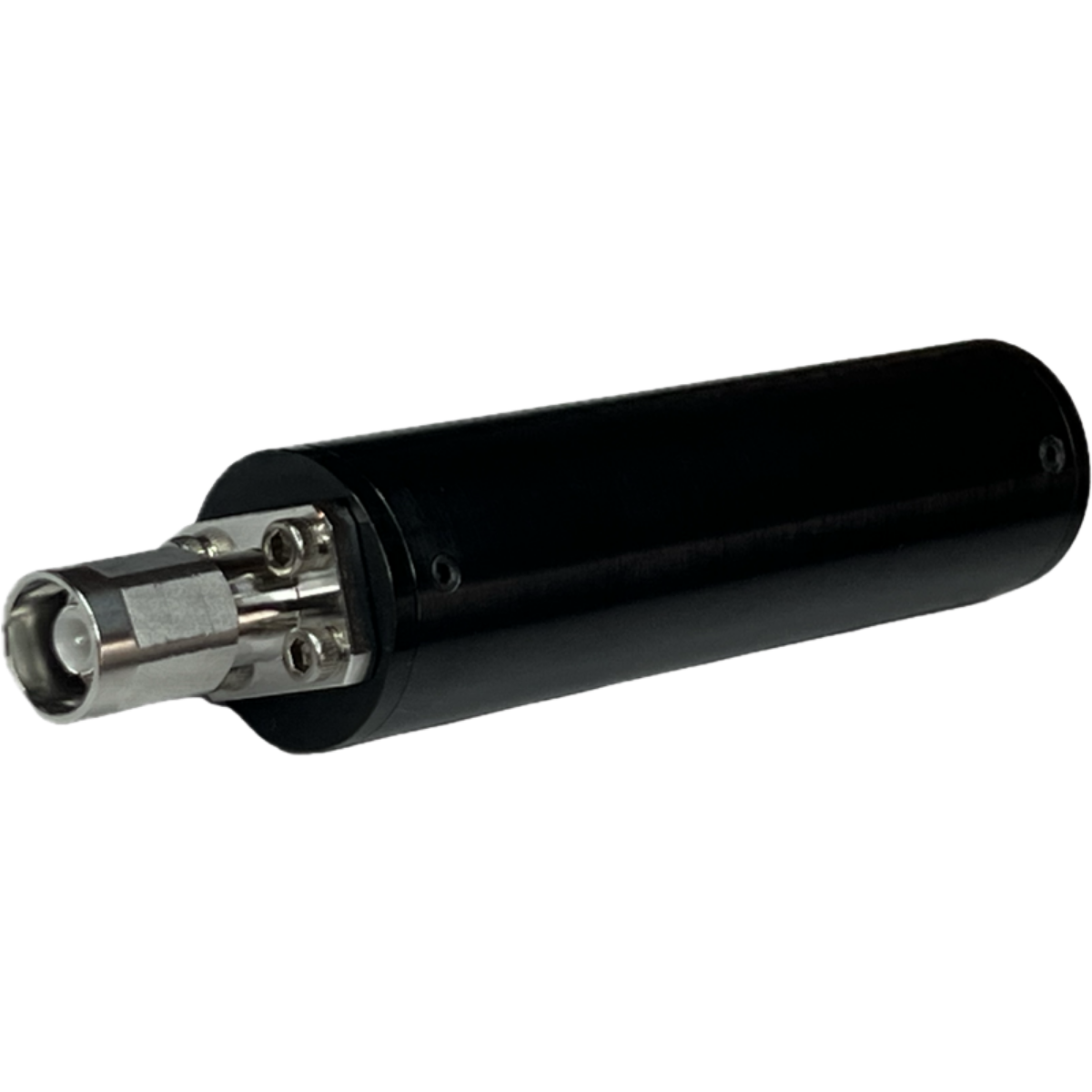

The TA-A99 Low PIM 20 Watt Termination is a high-performance RF termination designed for Distributed Antenna Systems (DAS), wireless infrastructure, and RF testing applications. Operating from 600 MHz to 6000 MHz, it delivers excellent return loss, outstanding low PIM performance, and reliable power handling for terminating unused RF ports. Engineered for dependable performance in broadband communication networks, the TA-A99 is ideal for hybrid combiners, directional couplers, in-building wireless systems, and laboratory test environments.
General Specifications:
Device Type: Low PIM RF Termination
Model Number: TA-A99
Frequency Range: 600 – 6000 MHz
Power Handling: 20 W Max (600–2000 MHz), 10 W Max (2000–6000 MHz)
Return Loss: 20 dB
PIM Performance: -160 dBc @ 1900 MHz
Impedance: 50 Ω
Connector Options: NEX10, 2.2-5, 4.3-10, Type N, and 7-16 DIN (Male/Female)
Application Areas: Distributed Antenna Systems (DAS), wireless infrastructure, hybrid combiners, directional couplers, RF testing, laboratory applications, cellular networks, and in-building wireless systems.
