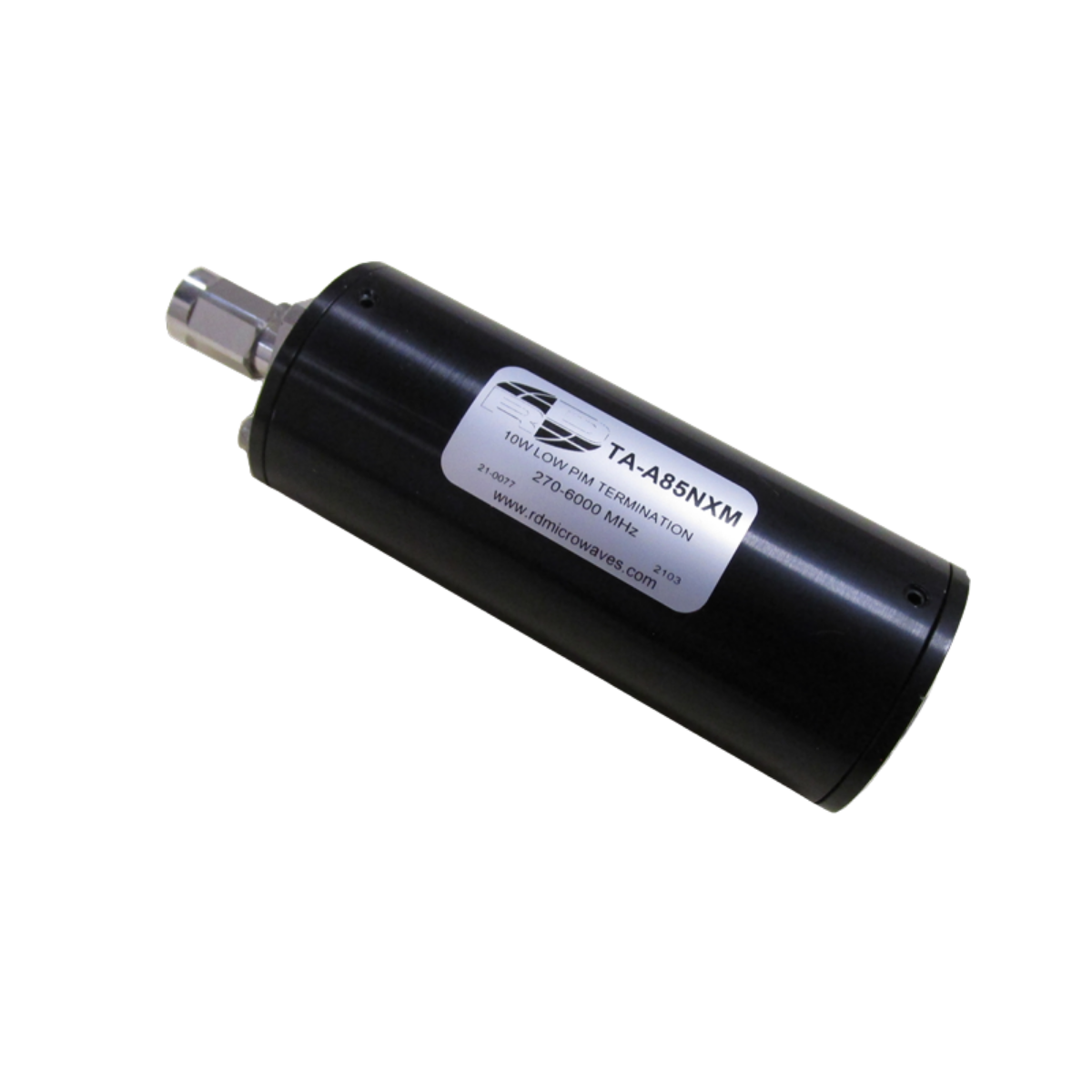

The TA-A85 Low PIM Termination is a high-performance RF termination engineered for Distributed Antenna Systems (DAS), wireless infrastructure, and commercial communication networks. Designed to safely terminate unused RF ports, it delivers outstanding low PIM performance, excellent return loss, and reliable power handling across a wide operating frequency range. Built for dependable performance in demanding indoor and outdoor environments, the TA-A85 is ideal for DAS installations, cellular networks, broadband RF distribution, and in-building wireless applications.
General Specifications:
Device Type: Low PIM Termination
Model Number: TA-A85
Frequency Range: 600 – 6000 MHz
Power Handling: 85 W Average
PIM Performance: -160 dBc Maximum (2 × +43 dBm)
Return Loss: 23 dB
Input Connector: Available in Type N, 7-16 DIN, 4.3-10, or NEX10 (Male or Female)
Impedance: 50 Ohms
Environmental Rating: IP67
Application Areas: Distributed Antenna Systems (DAS), wireless infrastructure, cellular networks, broadband RF distribution, in-building wireless systems, RF testing, and termination of unused RF ports.
