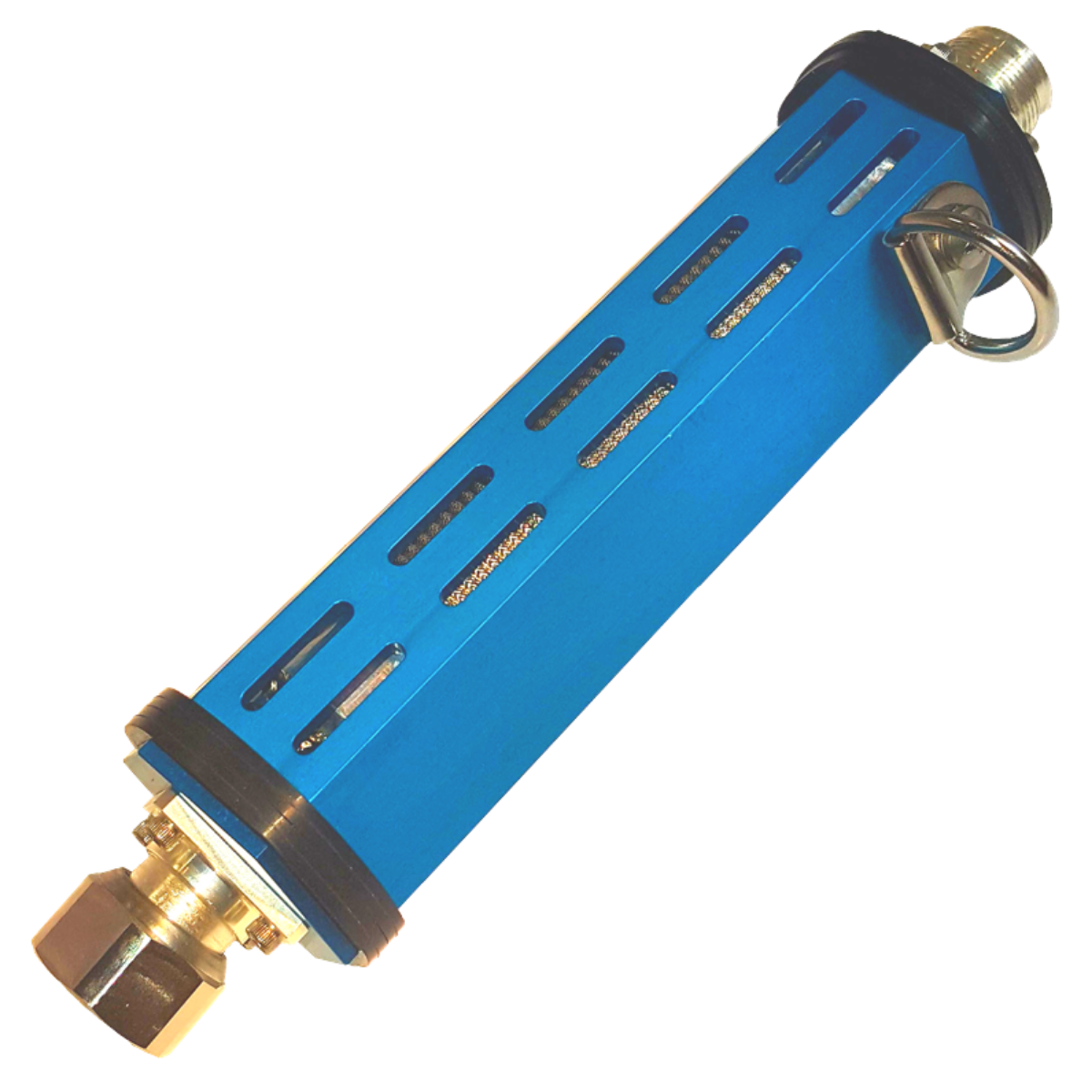

The TA-A83 Termination Field Test 2 Connectors is a rugged low PIM RF termination designed for field testing of Distributed Antenna Systems (DAS) and wireless communication networks. Operating from 600 MHz to 6000 MHz, it supports up to 60 watts of continuous power and features dual connector configurations to eliminate the need for additional adapters during testing. Engineered for both PIM and sweep testing, the TA-A83 delivers reliable performance for in-building wireless systems, network commissioning, and RF maintenance applications.
General Specifications:
Device Type: Two Connector Field Test Termination
Model Number: TA-A83
Frequency Range: 600 – 6000 MHz
Power Handling: 60 W Average
Return Loss: 24 dB Typical
PIM Performance: -160 dBc Maximum
Connector Options: DIN, 4.3-10, or NEX10 (Male/Female Configuration)
Configuration: Dual Connector Field Test Termination
Application Areas: Distributed Antenna Systems (DAS), PIM testing, sweep testing, wireless infrastructure, RF field testing, network commissioning, in-building wireless systems, and cellular network maintenance.
