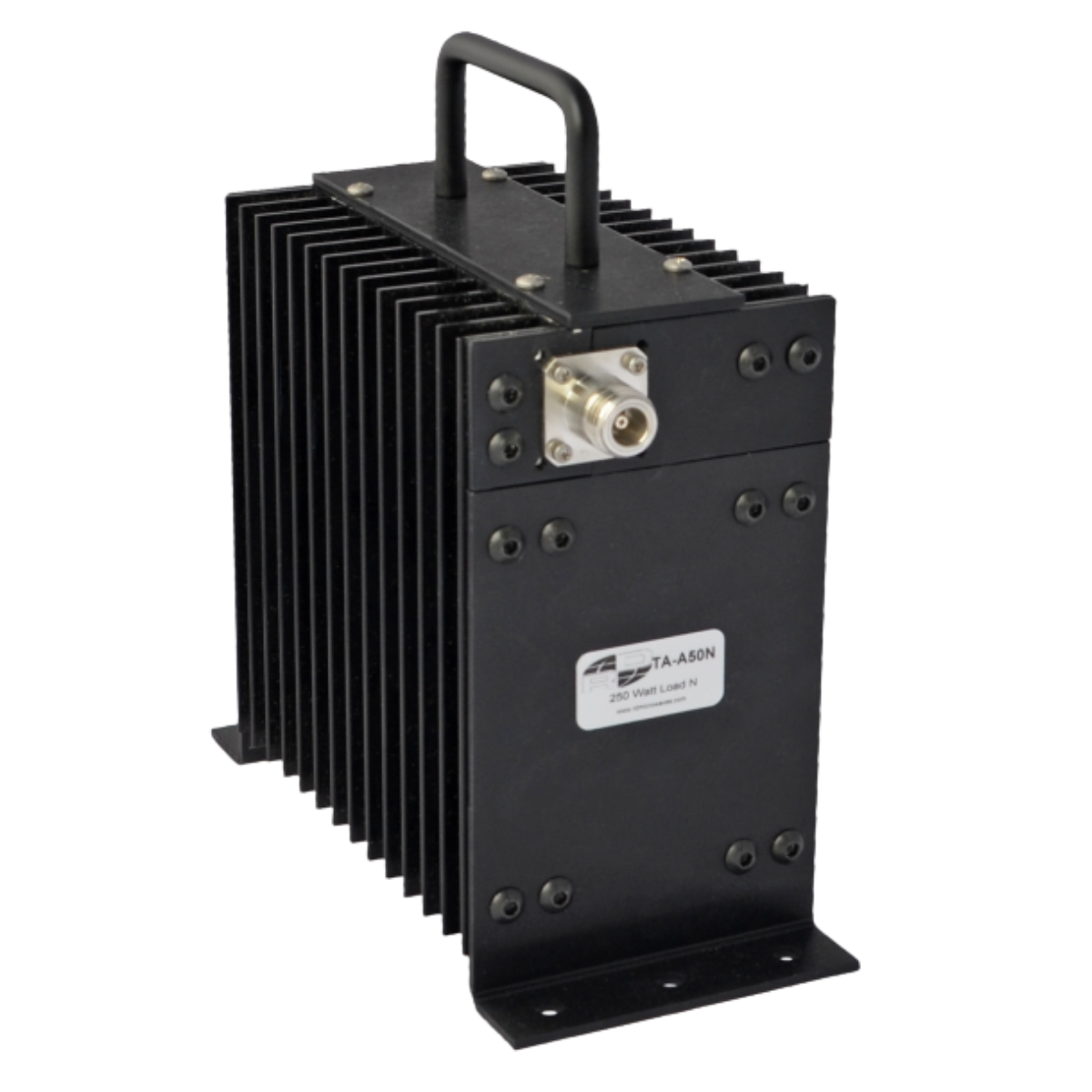

The TA-A50 Low PIM Test Termination is a high-performance RF termination designed for Distributed Antenna Systems (DAS), wireless infrastructure, and RF testing applications. Operating from DC to 6000 MHz, it delivers reliable 50 Ω termination with outstanding low PIM performance, high power handling, and excellent VSWR characteristics. Engineered for accurate RF testing and network optimization, the TA-A50 provides dependable performance for in-building wireless systems, cellular networks, and broadband communication infrastructure.
General Specifications:
Device Type: Low PIM Test Termination
Model Number: TA-A50
Frequency Range: DC – 6000 MHz
Impedance: 50 Ω
Average Power Handling: 50 W
PIM Performance: -160 dBc Maximum (2 × +43 dBm)
VSWR: ≤ 1.25:1 (Typical)
Connector Type: 4.3-10 Male
Application Areas: Distributed Antenna Systems (DAS), wireless infrastructure, RF testing, cellular networks, network commissioning, in-building wireless systems, broadband RF distribution, and test & measurement applications.
