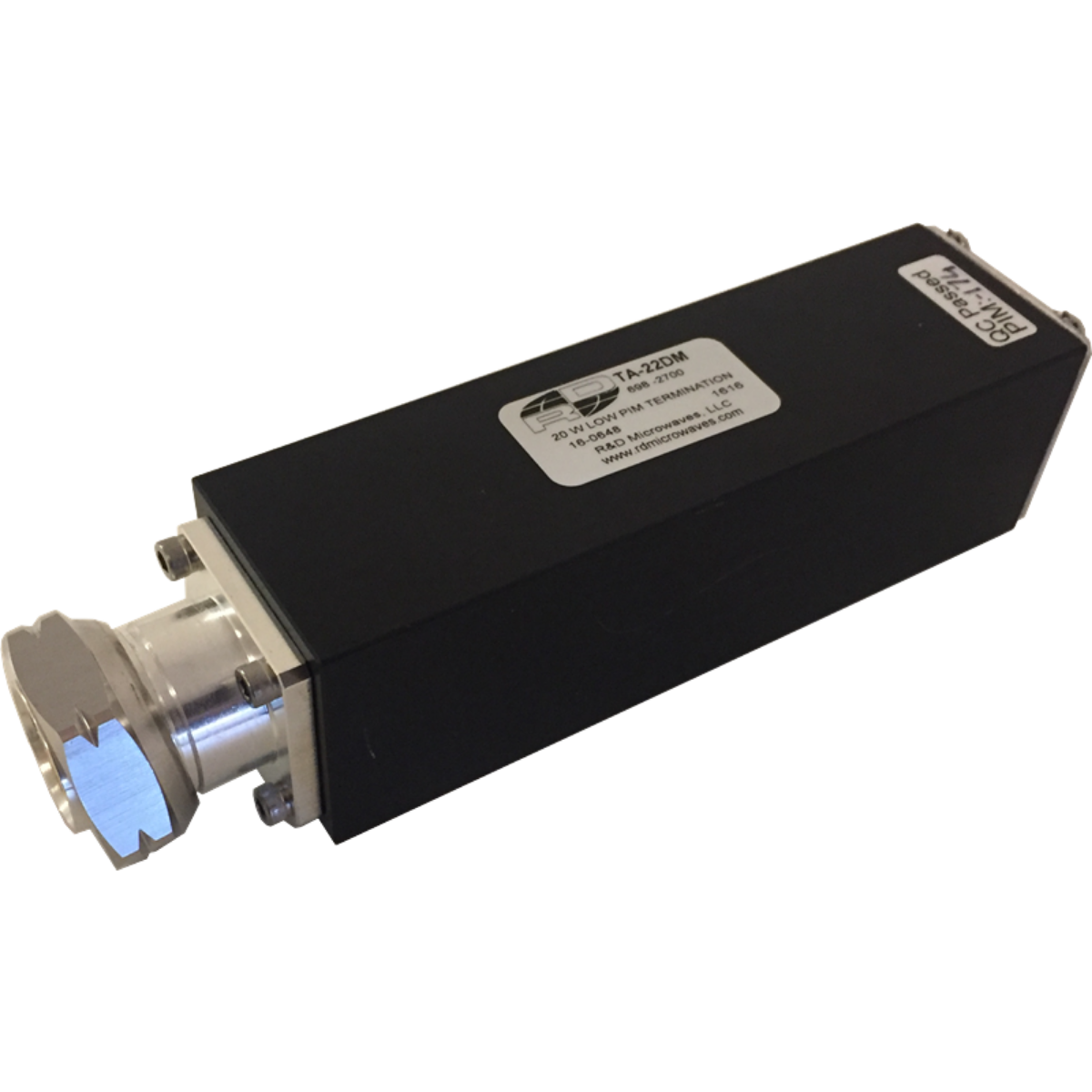

The TA-22XX Low PIM Termination is a high-performance RF termination designed for Distributed Antenna Systems (DAS), wireless infrastructure, and commercial communication networks. Operating from 380 MHz to 6000 MHz, it delivers outstanding low PIM performance, excellent return loss, and reliable power handling in demanding RF environments. Engineered to minimize passive intermodulation while maintaining signal integrity, the TA-22XX is ideal for in-building wireless systems, cellular networks, broadband RF distribution, and RF testing applications.
General Specifications:
Device Type: Low PIM Termination
Model Number: TA-22XX
Frequency Range: 380 – 6000 MHz
Power Handling: 20 W Average
PIM Performance: Better than -160 dBc Typical (2 × +43 dBm)
Impedance: 50 Ohms
Return Loss: 20 dB Typical (application dependent)
Connector Options: 7-16 DIN, 4.3-10, Type N, or NEX10 (Male or Female)
Load Type: Low PIM Cable Termination
Configuration: Rectangular Package
Application Areas: Distributed Antenna Systems (DAS), wireless infrastructure, cellular networks, in-building wireless systems, broadband RF distribution, RF testing, and network optimization.
