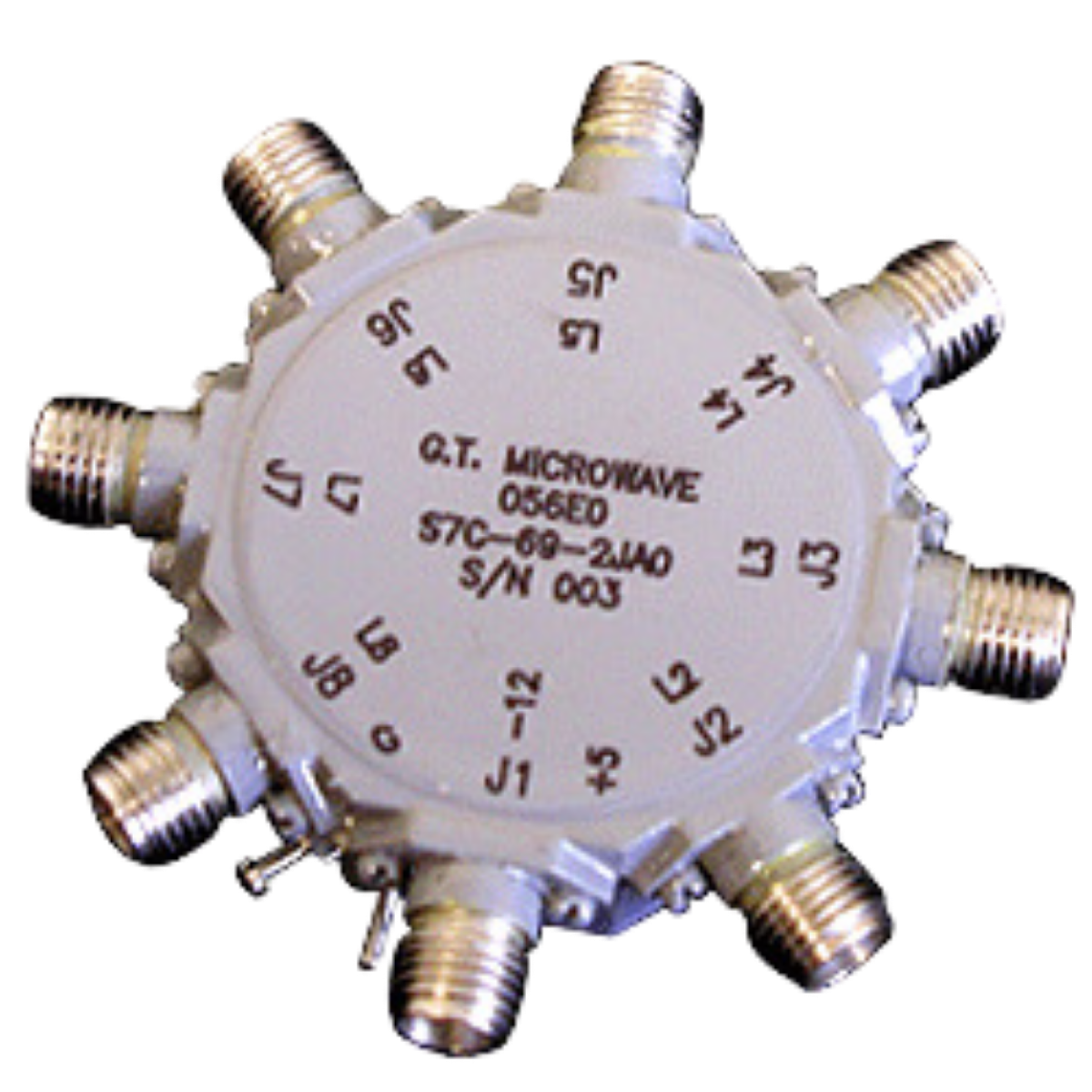

The SP7T PIN Diode Switch is a high-performance single-pole seven-throw RF switch designed for broadband microwave applications requiring fast switching speed, low insertion loss, and reliable signal routing. Available in absorptive or reflective configurations, these switches support customized frequency ranges and provide excellent isolation performance, making them ideal for RF testing, communication systems, radar applications, and automated measurement systems. Designed with TTL-compatible control logic and rugged construction, the SP7T switch provides dependable performance across demanding environments.

General Specifications:

Device Type: PIN Diode Switch (SP7T – Single Pole Seven Throw)
Model Number: SP7T
Configuration: Single Pole Seven Throw (SP7T)
Frequency Range: 100 MHz – 24 GHz (custom bandwidths available)
Switch Type: Available in absorptive or reflective configurations
Control Logic: TTL Compatible Logic
Switching Speed: High-speed switching performance
Impedance: 50 Ohms
Connector Type: SMA Female (standard)
Power Handling: High RF power handling (application dependent)
Operating Temperature Range: -55°C to +85°C
DC / Logic Interface: Solder terminals or multi-pin connector options
Package Configuration: Rectangular or round package options
Application Areas: RF testing, radar systems, communication systems, signal routing, automated test equipment, microwave measurement systems
