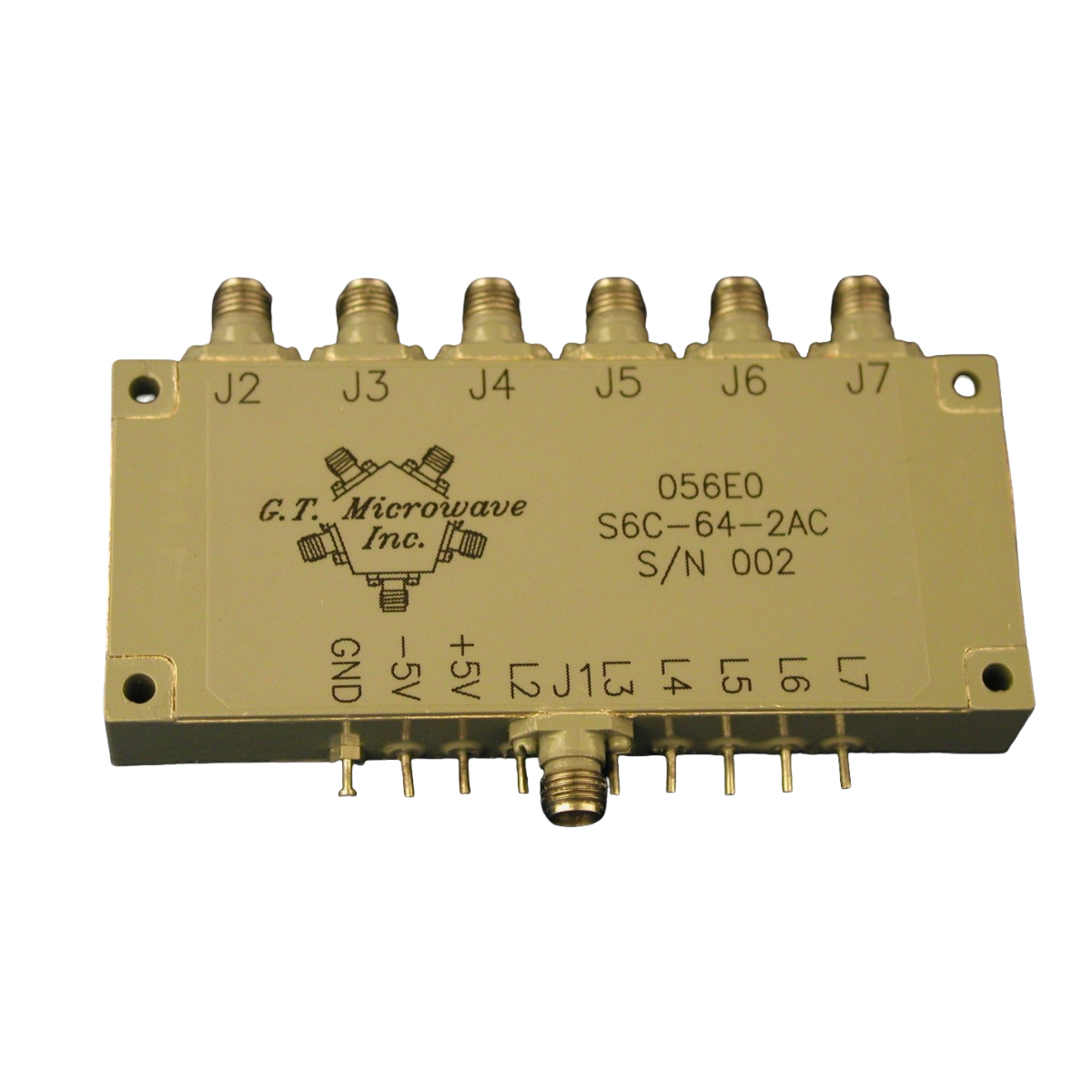

The SP6T PIN Diode Switches are high-performance broadband RF switches designed for fast switching applications across microwave frequency ranges. Available in absorptive or reflective configurations, these switches provide high isolation, low power consumption, and customizable frequency coverage, making them ideal for RF systems, test equipment, communication systems, and microwave switching applications. They support multiple control options and can be customized for optimized bandwidth, matched phase, and amplitude performance.

General Specifications:

Device Type: SP6T PIN Diode Switch
Model Number: SP6T
Frequency Range: 100 MHz – 24 GHz (optimized bandwidths available)
Switch Configuration: Single Pole Six Throw (SP6T)
Switch Type: Available in absorptive or reflective models
Control Logic: TTL Compatible Logic
Switching Speed: High-speed switching available (application dependent)
Impedance: 50 Ohms
Connector Type: SMA Female (standard)
Control Interface: Solder terminals or multi-pin connector options
Power Requirements: ±5 VDC (TTL driver versions)
Power Consumption: Low DC power consumption
Operating Temperature Range: -55°C to +85°C
Phase / Amplitude Matching: Optional matched ports available
Mechanical Configuration: Rectangular or round package configurations available
Application Areas: RF switching systems, communication systems, test equipment, microwave systems, laboratory measurements, and broadband signal routing
