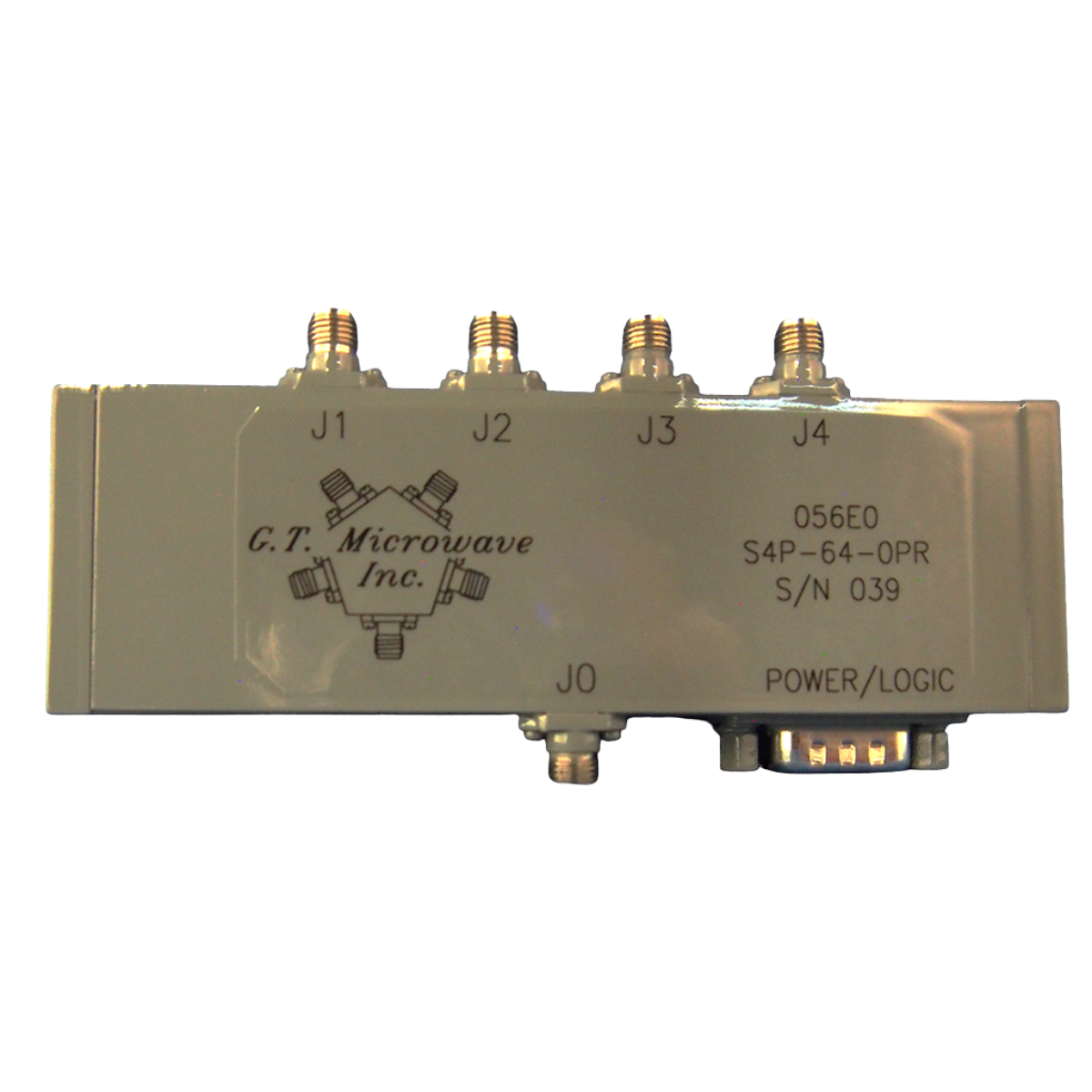

The SP4T PIN Diode Switches are broadband RF switches designed for high-speed signal routing across frequencies from 100 MHz to 24 GHz. Available in absorptive or reflective configurations, these switches provide excellent isolation, low insertion loss, fast switching speed, and reliable broadband performance for RF systems, communication equipment, radar systems, and laboratory test applications. Multiple control and connector options allow customization for demanding microwave and millimeter wave environments.

General Specifications:

Device Type: SP4T PIN Diode Switch
Switch Configuration: Single Pole Four Throw (SP4T)
Frequency Range: 100 MHz – 24 GHz
Switch Type: Absorptive or Reflective Models Available
Isolation: High isolation performance available
Insertion Loss: Low insertion loss broadband design
Switching Speed: High-speed switching performance
Control Logic: TTL Compatible Logic
Logic Control: Logic “1” = Isolation, Logic “0” = Insertion Loss
RF Connector Type: SMA Female
DC / Logic Interface: Solder terminals or Multi-Pin connector
Impedance: 50 Ohms
Operating Temperature Range: -55°C to +85°C
Power Handling: High RF power handling capability
Configuration Options: Rectangular or round package configurations
Additional Features: Matched phase and amplitude options available
Application Areas: RF signal routing, communication systems, radar systems, microwave testing, laboratory measurements, and broadband RF switching
