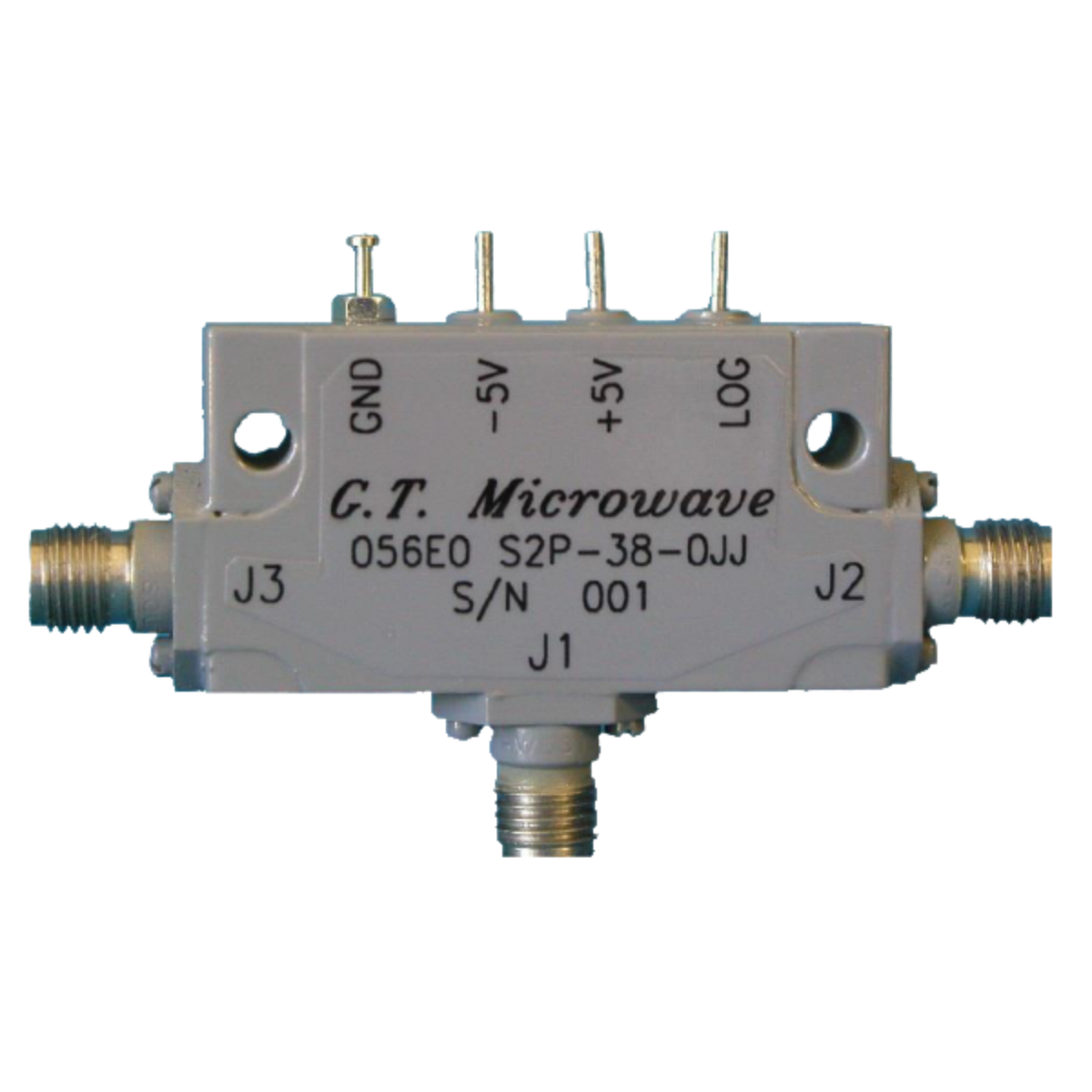

The SP2T PIN Diode Switches are high-performance RF switching solutions designed for broadband microwave and communication applications. Engineered for fast switching speed, low insertion loss, and excellent isolation, these switches are ideal for RF signal routing, automated test systems, military communications, radar systems, and laboratory measurement applications.
General Specifications:
Device Type: SP2T PIN Diode Switch
Configuration: Single Pole Double Throw (SP2T)
Technology: PIN Diode Based Switching
Frequency Range: Broadband microwave frequency coverage
Insertion Loss: Low insertion loss performance
Isolation: High isolation between ports
Switching Speed: Fast switching response
Impedance: 50 Ohms
Connector Options: SMA, N-Type, and custom configurations available
Operating Mode: Absorptive and reflective models available
Application Areas: RF signal routing, communication systems, radar systems, automated test equipment, microwave systems, and laboratory measurements
