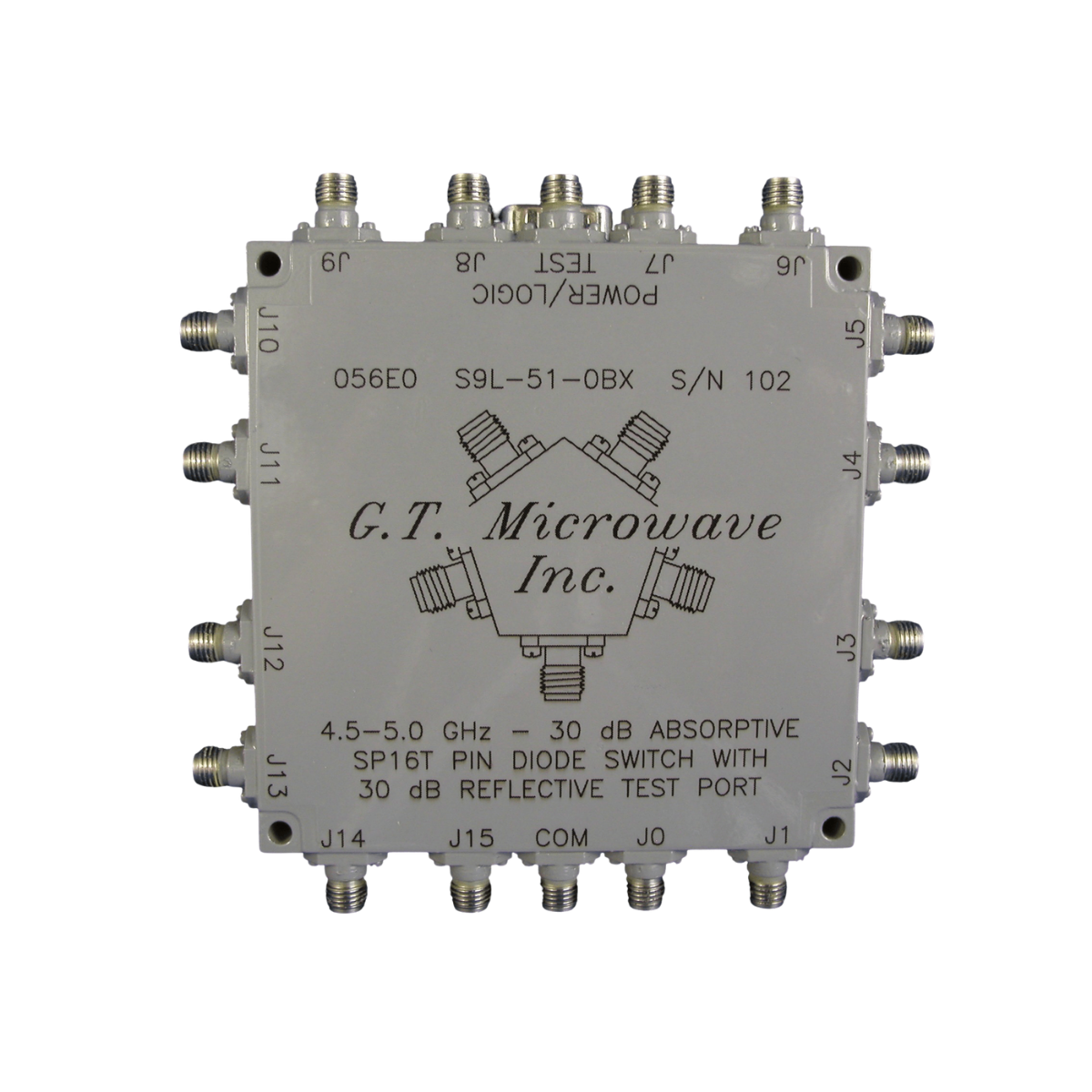

The SP16T PIN Diode Switch is a high-performance single-pole sixteen-throw switching solution designed for broadband microwave and RF applications. Available in absorptive or reflective configurations, these switches offer high-speed operation, low DC power consumption, and flexible configuration options, making them ideal for RF routing, automated test systems, communications, and defense applications. Designed for optimized bandwidth performance, these switches support customizable configurations to meet demanding system requirements.

General Specifications:

Device Type: PIN Diode Switch (SP16T Configuration)
Model Number: SP16T
Switch Configuration: Single Pole Six Throwteen (SP16T)
Frequency Range: 100 MHz – 24 GHz (optimized bandwidth options available)
Switch Type: Available in absorptive or reflective configurations
Control Logic: 5-Bit Binary TTL Compatible Logic
Switching Speed: High-speed switching performance
Connector Type: SMA Female RF Connectors
DC / Logic Interface: Solder terminals or Multi-Pin connector options
Power Supply Requirements: ±5 VDC @ +850 / -200 mA (TTL driver versions)
Operating Temperature Range: -40°C to +70°C
Impedance: 50 Ohms
Phase Matching: ±5° typical port-to-port matching
Amplitude Matching: ±0.5 dB typical port-to-port matching
Configuration Options: SP9T through SP16T custom configurations available
Application Areas: RF routing, automated test equipment, communications systems, aerospace and defense systems, broadband microwave switching applications
