In Stock
| Parameter | Typical Value |
|---|---|
| Frequency band | 2.0–2.3 GHz |
| Polarization | RHCP |
| Return Loss | 22 dB |
| Directivity | 6.5 dBi |
| Cross-Polar | 18 dB |
| Axial Ratio | 1.5 dB |
| Interface | SMA Connector (F) |
| Size | 97.6 x 97.6 x 35.9 mm |
| Mass | 196 g |
| TRL | 9 |
Technical data, resources and engineering actions for this exact catalog model.

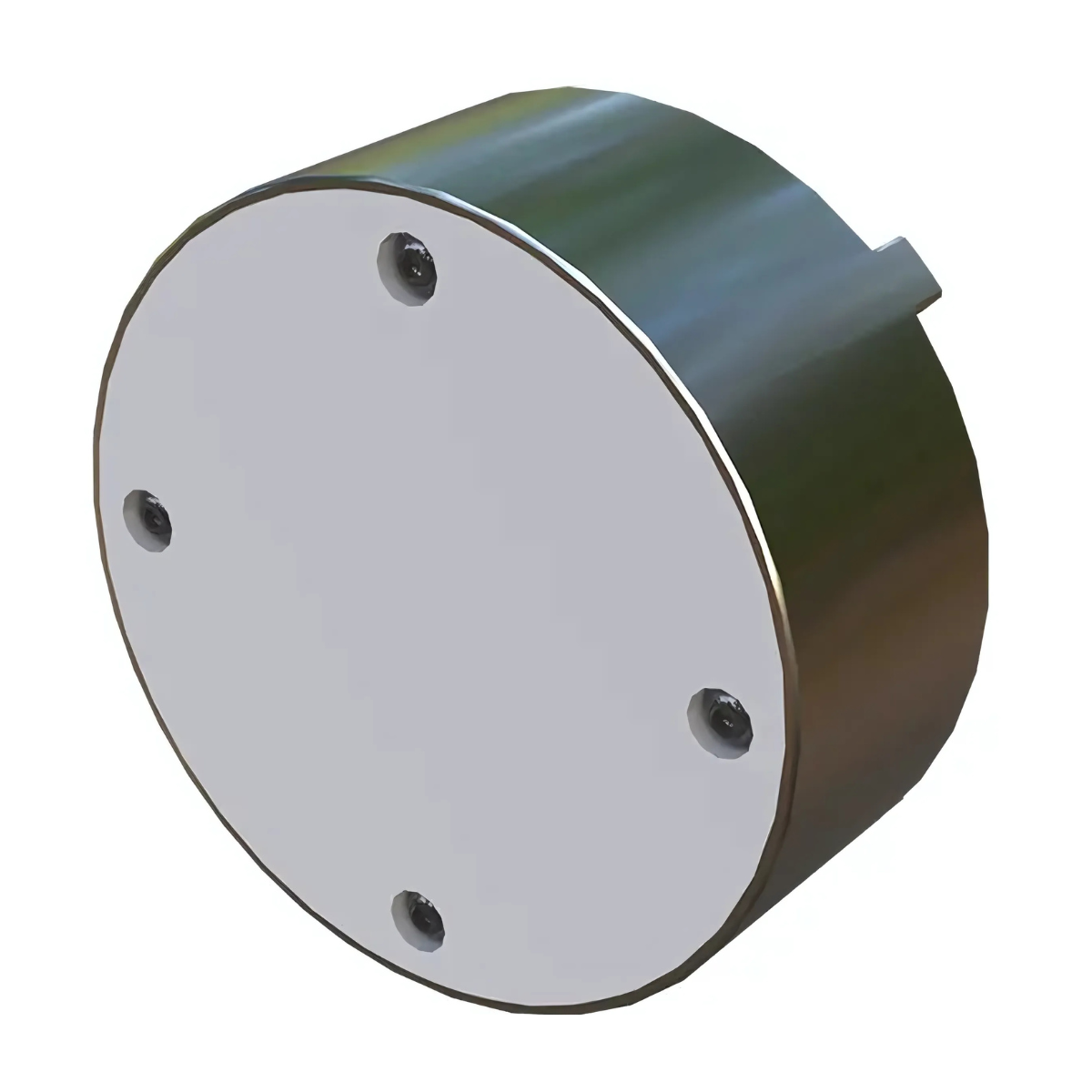

Anteral’s S-Band SCP antenna delivers a compact and reliable solution for TTC&C satellite applications. Designed with planar technology, it fits easily within a 1U cubesat structure, making it ideal for smallsats and lightweight missions.
Covering the S-Band with right-handed circular polarization (RHCP), this antenna ensures strong signal performance in a compact form. It features a protective radome against harsh space environments and an integrated frame to secure the antenna firmly to the satellite body.
With low axial ratio, high return loss, and a rugged design, the S-Band SCP supports dependable telemetry, tracking, and control communications for NewSpace platforms.
