QV-Band SAT System

QV-Band SAT System

In Stock

QV-Band DCP2 Antenna (2211-229 QV band)

• Q/V Band
• High Gain: 30.5 dBi of Directivity
• <0.5 dB of Axial Ratio
• Compact size
• Perfect for satellites and smallsats
Parameter Typical Value
Frequency band 37.5–52.4 GHz
Return Loss 20 dB
Isolation between ports 17 dB
Directivity 30.5 dBi
Axial Ratio 0.5 dB
Cross-Polar Level -20 dB
Angular Beamwidth -5º
Polarization RHCP & LHCP
Ports WR19
Size 100 x 100 x 157.7 mm
Weight 280 g
TRL 7

Click to view datasheet

Request a Quote
Categories: ,
ENGINEERING DATA / QV-BAND

SPECIFICATION WORKSPACE

Technical data, resources and engineering actions for this exact catalog model.

ANTERALIN STOCKStandard DATA COVERAGE
01
KEY SPECIFICATIONSCatalog values for QV-Band
Frequency37.5–52.4 GHz
WaveguideWR19
ENGINEERING USE: Confirm mechanical interface, environmental requirements, qualification level and application-specific limits before final design release. Published catalog values remain controlling where differences exist.
03 / NEXT ACTIONMOVE FROM PART DATA TO AN ENGINEERING DECISION.
COMPARECompare This ProductOpen the 4-product SpecMatch comparison → ALTERNATIVESFind Equivalent PartsUse CrossMatch against this model → MODIFY / BUILDCustom RequirementSend an engineering requirement →
PROCUREMENTAdd to RFQ
ADD TO RFQ

Description

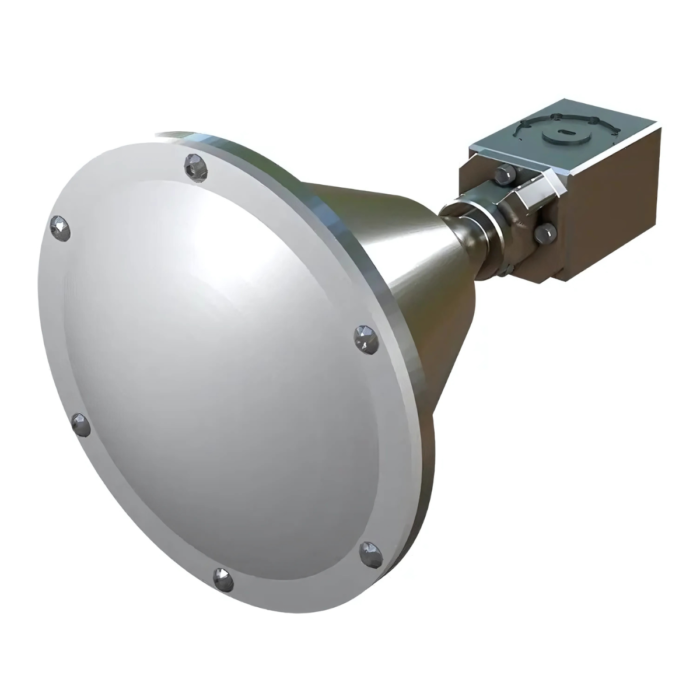

Anteral’s QV-Band SAT System is a compact, high-performance antenna built for smallsat and satellite communication applications. Designed for dual-circular polarization (RHCP and LHCP), it operates across the Q/V Band from 37.5 to 52.4 GHz, delivering strong link performance in space-limited environments.

With a high directivity of 30.5 dBi and an axial ratio of less than 0.5 dB, the QV-Band SAT System ensures reliable, efficient signal transmission. The lightweight lens antenna design maintains a small footprint while providing excellent gain.

Its rugged frame, 2-port configuration, and customizable clamping points make it a practical solution for NewSpace platforms where compact size and high performance are critical factors.

NEED HELP WITH THIS RF COMPONENT?Ask Impulse Sales

Get help with specifications or sourcing

Tell us what you need for QV-Band SAT System. Impulse Sales can follow up about specifications, matching products, or a quotation.

This is a one-to-one product-assistance request, not newsletter signup. Don't submit controlled or export-restricted technical details. See our privacy policy.
