In Stock
| Parameter | Typical Value |
|---|---|
| Frequency band – RX | 17.7–21.2 GHz |
| Frequency band – TX | 27.5–31 GHz |
| Return Loss | 18 dB |
| Axial Ratio | 1 dB |
| Isolation RX–TX & TX–RX | 80 dB |
| Ports | WR-42 & WR-28 |
| Size | 56 x 75 x 189 mm |
| Mass | 400 g |
Create a free business account to manage your contact information, review your account’s quotes and orders, and update your preferences.
Technical data, resources and engineering actions for this exact catalog model.

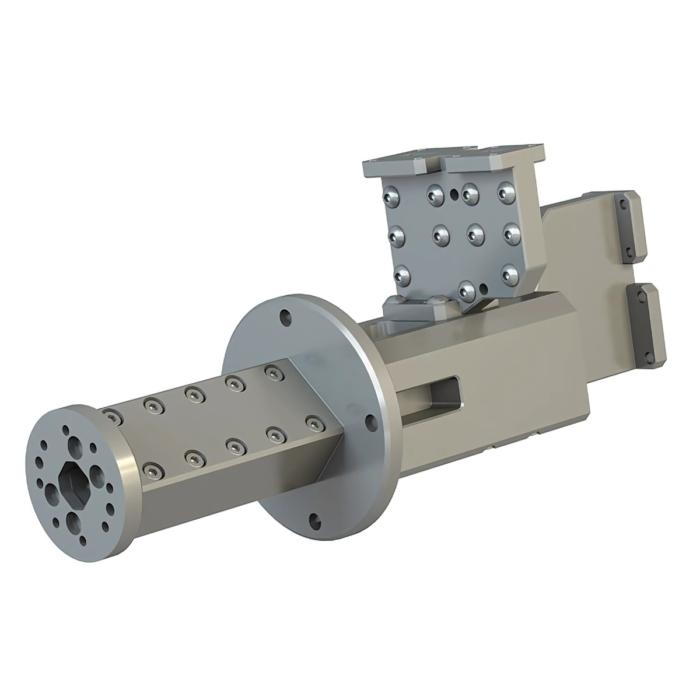

Anteral’s K/Ka-Band Feeding Network is a compact dual-circular polarization system designed for satellite antennas operating across K and Ka bands. The unit includes two ports for RHCP and LHCP transmission and two ports for RHCP and LHCP reception, forming a fully reconfigurable subsystem.
At the core of the system is a high-isolation diplexer and a high-performance orthomode transducer. Together, they provide over 80 dB of isolation between TX and RX channels. The integrated polarizer ensures accurate polarization control, maintaining a typical axial ratio below 1 dB.
Built for compact integration, the unit supports WR-42 and WR-28 interfaces and offers low return loss at 18 dB. It’s ideal for advanced satellite systems where performance, flexibility, and efficient signal separation are key.
