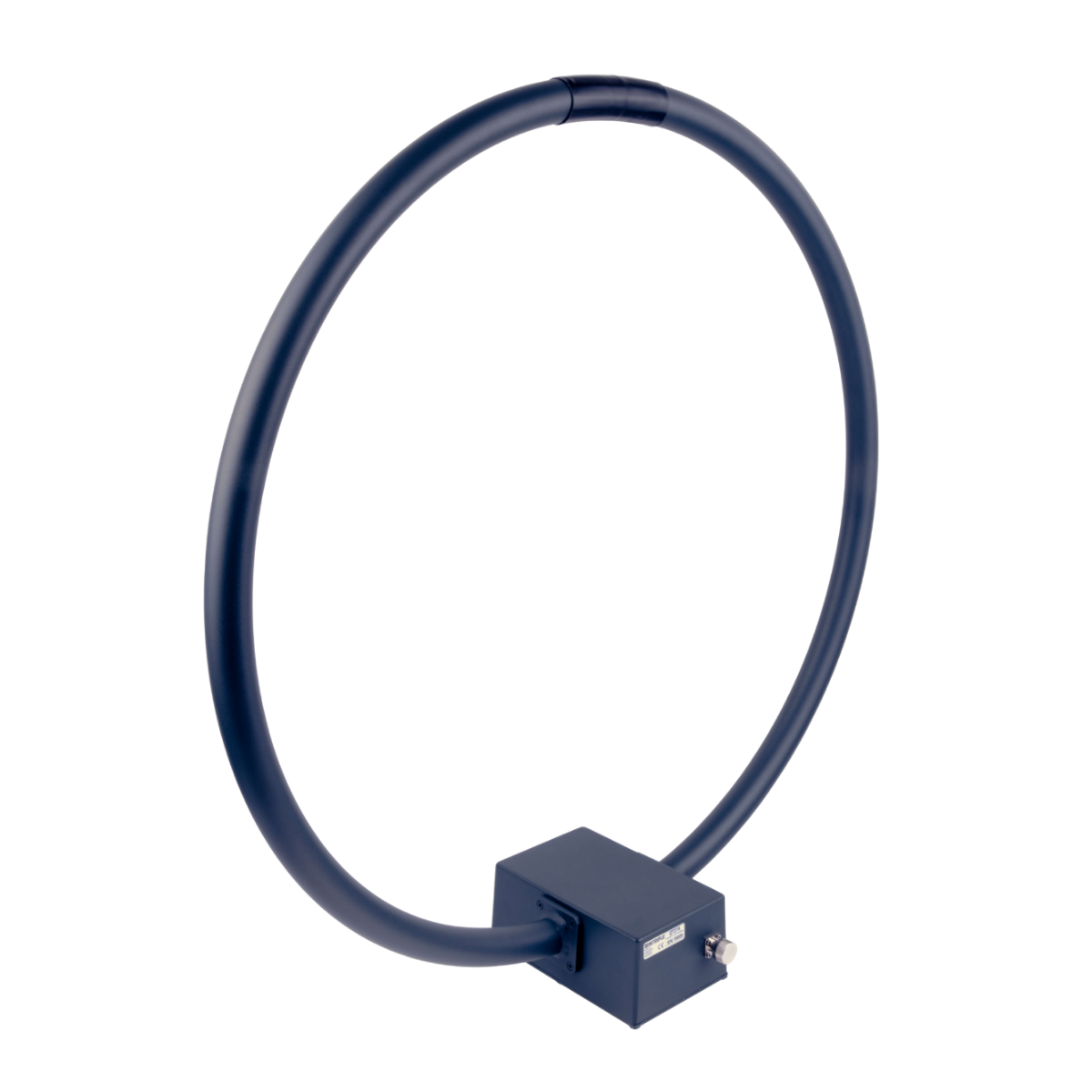

The IZ727 Magnetic Loop Antenna is a high-sensitivity passive antenna optimized for TEMPEST, EMI, and EMC measurements across the 100 Hz to 500 kHz frequency range. Designed with a 70 cm shielded loop and stable linear performance, the IZ727 delivers reliable magnetic field detection for radiated emissions testing, laboratory analysis, and low-frequency RF measurement applications. Its lightweight construction and broadband response make it ideal for demanding EMC and security testing environments.
General Specifications:
Device Type: Magnetic Loop Antenna
Model Number: IZ727
Frequency Range: 100 Hz – 500 kHz
Sensitivity: -30 dBμA/m/Hz at 1 kHz with 0 dB NF
Sensitivity at 500 kHz: -73 dBμA/m/Hz with 0 dB NF
Polarization: Linear
Design Type: Passive shielded loop antenna
Loop Diameter: 70 cm
Connector Type: N Female (IZ727A) / Twinax Female (IZ727B)
Radiation Pattern: Broadband magnetic field reception
Dimensions: 78 cm × 70 cm × 21 cm
Weight: 2.3 kg
Application Areas: TEMPEST measurements, EMI testing, EMC measurements, radiated emissions testing, laboratory RF measurements, and magnetic field analysis
