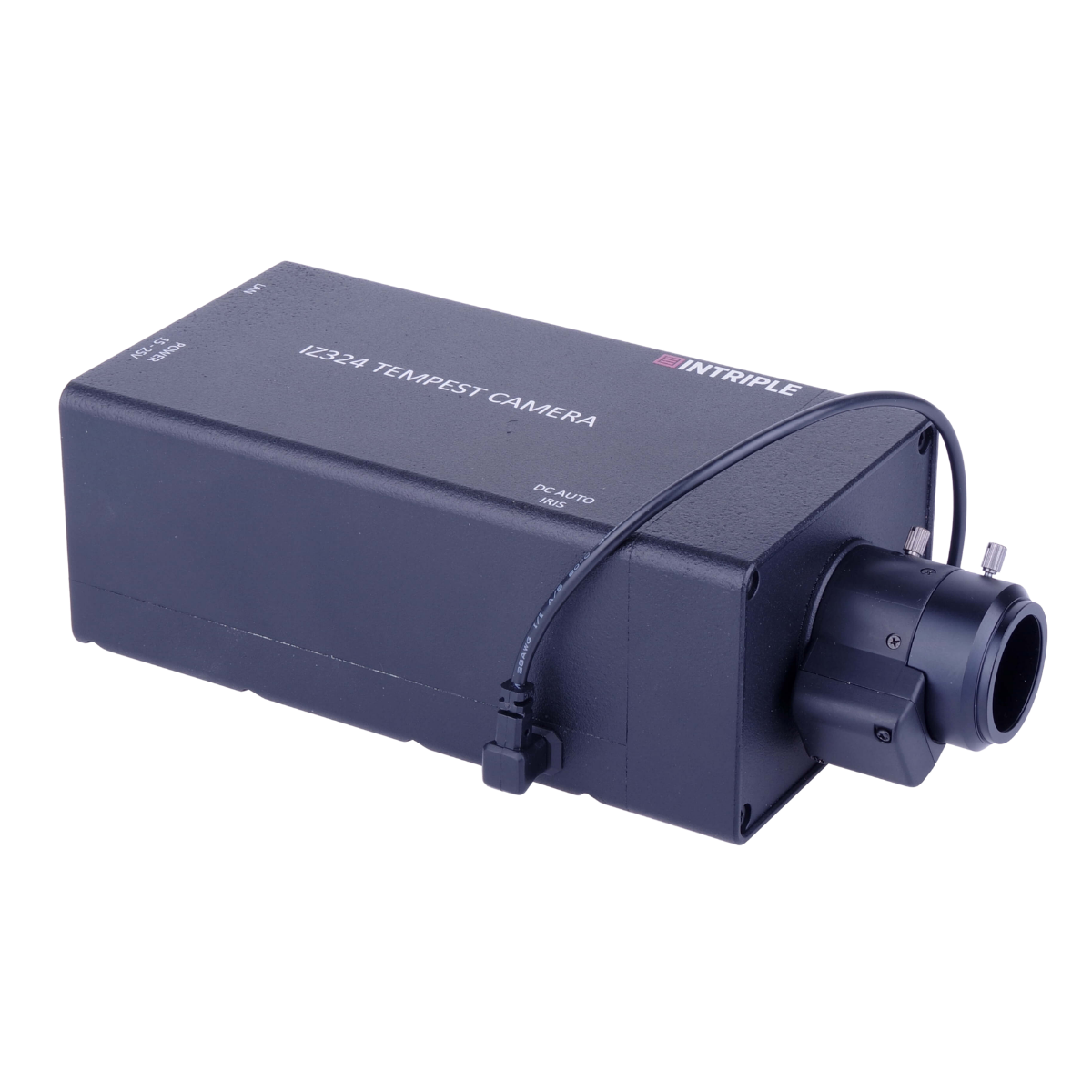

The IZ324B TEMPEST IP Camera is a specialized low-emission IP camera designed for installation inside anechoic chambers and secure TEMPEST measurement environments. Engineered to comply with NATO SDIP-27 Level A requirements, the camera utilizes a fibre optic SFP interface and shielded DC power design to minimize electromagnetic radiation. With Full HD resolution, web-based access, and support for DC auto iris lenses, the IZ324B is ideal for classified network monitoring, secure RF testing, and sensitive measurement applications.
General Specifications:
Device Type: TEMPEST IP Camera
Model Number: IZ324B
Resolution: 1920 × 1080 pixels
Video Frame Rate: 25 fps
Lens Support: DC Auto Iris Control
Power Supply: DC +15V to +25V
Power Connector: Coaxial SMA Female
Data Interface: Optical SFP Interface
Network Compliance: NATO SDIP-27 Level A
Video Access: Web-based video stream, snapshots, and settings
Electromagnetic Emission: Extremely low radiation design for TEMPEST environments
Operating Temperature: 0°C to +55°C
Weight: 1.3 kg
Application Areas: TEMPEST measurements, anechoic chambers, classified networks, RF testing, secure monitoring systems, and compromising emanation measurement systems
