In Stock
• E Band
• High Gain: 31.5 dBi of Directivity
• <1 dB of Axial Ratio
• Compact size (1U)
• Perfect for satellites and smallsats
| Parameter | Typical Value |
|---|---|
| Frequency band | 71–86 GHz |
| Return Loss | 18 dB |
| Isolation between ports | 18 dB |
| Directivity | 31.5 dBi |
| Axial Ratio | 1 dB |
| Cross-Polar | -20 dB |
| Angular Beamwidth | 4º |
| Polarization | RHCP & LHCP |
| Ports | WR12 |
| Size | 75 x 75 x 90 mm |
| Weight | 152 g |
| TRL | 7 |
Create a free business account to manage your contact information, review your account’s quotes and orders, and update your preferences.
Technical data, resources and engineering actions for this exact catalog model.

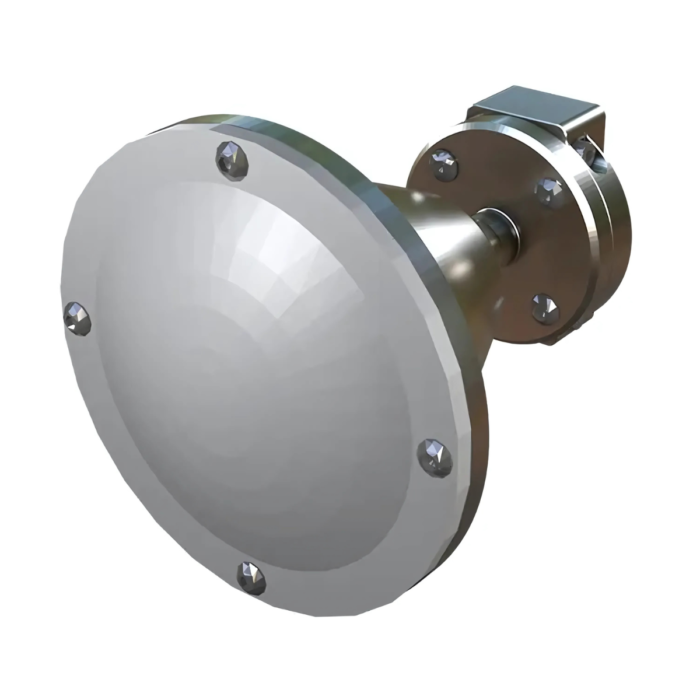

Anteral’s E-Band SAT System delivers high directivity and compact performance for satellite and smallsat communication platforms. Designed for dual-circular polarization (RHCP and LHCP), this two-port system operates across the E-Band, from 71 to 86 GHz.
With less than 1 dB of axial ratio and 31.5 dBi of directivity, the E-Band SAT System offers strong, reliable signal transmission in space-constrained environments. The lens antenna design ensures excellent gain while maintaining a compact 1U form factor.
A rugged construction, lightweight body, and customizable clamping points make this subsystem an ideal choice for NewSpace missions where size, weight, and performance are critical factors.
