In Stock
| Parameter | Typical Value |
|---|---|
| Frequency Band – Port 1 | 2.042 – 2.092 GHz |
| Frequency Band – Port 2 | 2.220 – 2.270 GHz |
| Polarization | RHCP |
| Return Loss | 12 dBi |
| Interface | MMCX Connector (F) |
| Size | 99 x 99 x 6.5 mm |
| Mass | 129 g |
| TRL | 9 |
Create a free business account to manage your contact information, review your account’s quotes and orders, and update your preferences.
Technical data, resources and engineering actions for this exact catalog model.

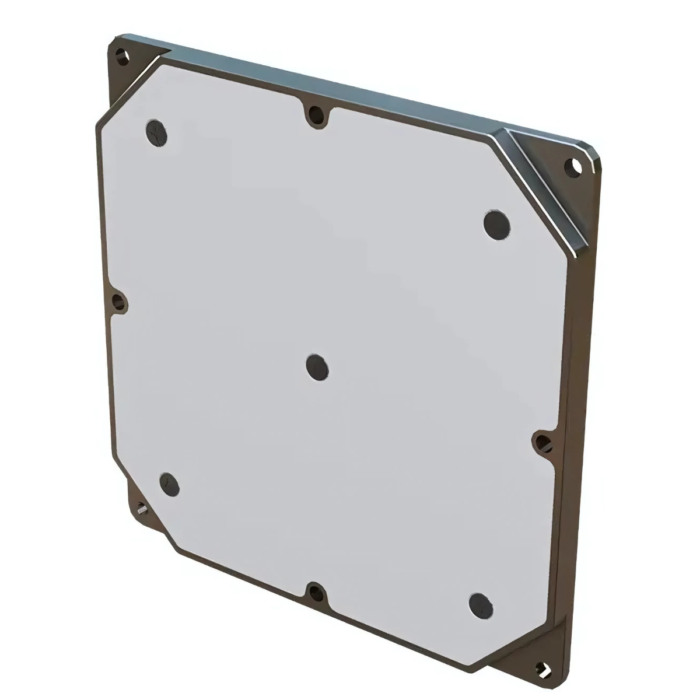

Anteral’s Dual S-Band SCP is a planar, ultra-low-profile antenna designed for small satellites requiring TT&C functionality. With just 6.5 mm of thickness, it delivers reliable performance across two separate S-band channels for telemetry and telecommand operations.
The antenna supports right-hand circular polarization (RHCP) on both ports and integrates easily into a 1U CubeSat platform. It features a rugged radome for protection in harsh environments and a structural frame for simplified satellite integration.
Its compact size, low weight, and dual-channel capability make it a strong choice for space missions where every gram and cubic millimeter count.
