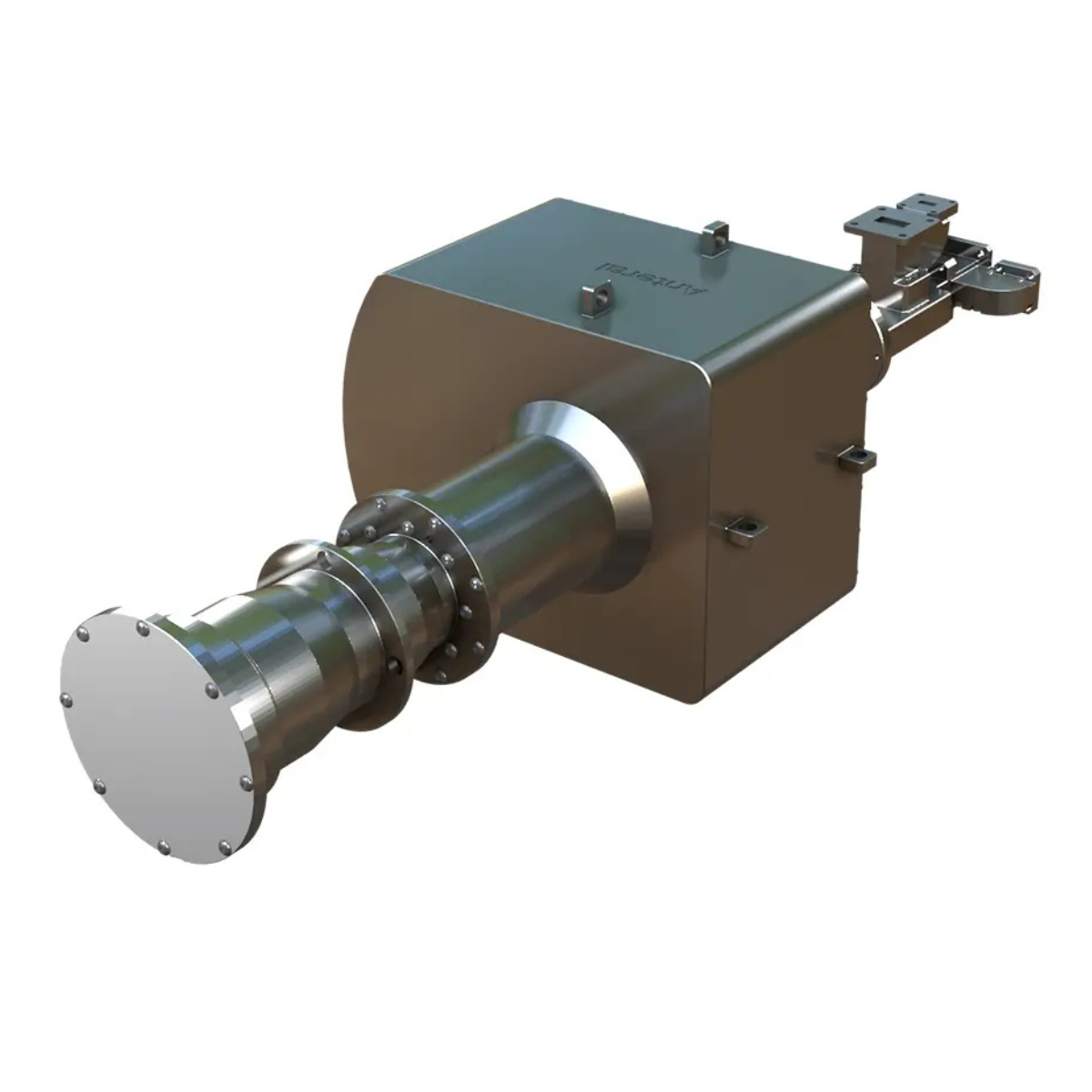

DBS-KA Feed
• X/K/Ka bands
• High Isolation
• Low Insertion Loss
• High-Power handling
• High Isolation
• Low Insertion Loss
• High-Power handling
| Parameter | Typical Value |
|---|---|
| DBS Frequency band – TX | 17.3–18.1 GHz |
| Ka Frequency band – RX | 25.5–27 GHz |
| Ka Frequency band – Tracking | 25.5–27 GHz |
| Polarization | RHCP & LHCP (all channels) |
| Isolation RHCP/LHCP | >25 dB |
| Isolation TX–RX | >50 dB |
| Isolation TX–Tracking | >100 dB |
| Axial Ratio – Data Channels | 0.5 dB |
| Axial Ratio – Tracking | 1.5 dB |
| Return Loss | >18 dB |
| Ports | WR62 & WR34 |
| Size | 146 x 186 x 531 mm |
| Mass | 4.1 kg |
