In Stock
| Parameter | Typical Value |
|---|---|
| Frequency band – RX | 3.45–4.2 GHz |
| Frequency band – TX | 5.775–6.425 GHz |
| Polarization | RHCP / LHCP |
| Axial Ratio | 1.5 dB |
| Directivity | 13 dBi |
| Crosspolar Level | 20 dB |
| Return Loss | 15 dB |
| Isolation RX–TX & TX–RX | 90 dB |
| Ports | WR-229 & WR-137 |
| Size | 150 x 220 x 370 mm |
| Mass | 1.8 kg |
Contact us for more details on this product.
Technical data, resources and engineering actions for this exact catalog model.

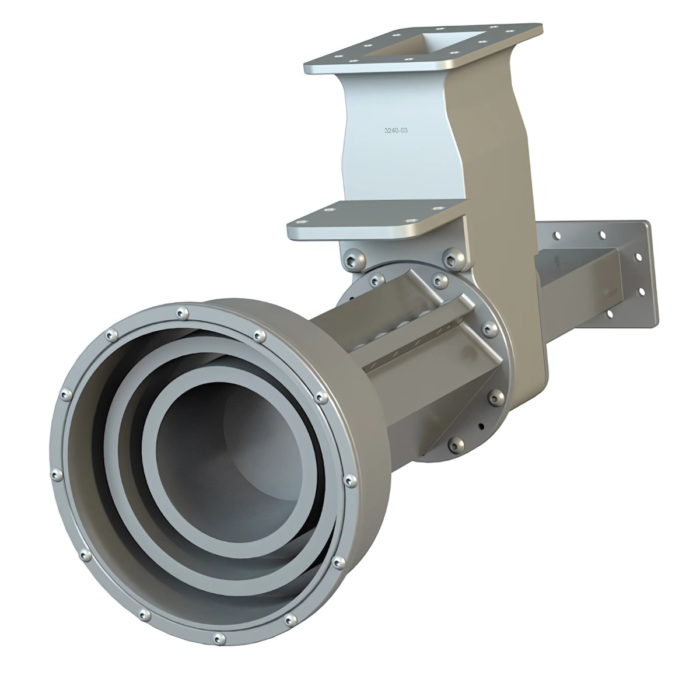

Anteral’s C-Band System is designed to illuminate reflectors with high precision, particularly those around 1.8 meters in diameter. It features two ports with switchable RHCP and LHCP polarization, and supports both transmit and receive operations across C-band frequencies.
The system includes a chokes antenna that delivers the desired beam pattern, a wideband polarizer, and an orthomode transducer (OMT). With 90 dB of isolation between TX and RX, and a directivity of 13 dBi, this antenna feed provides strong, clean signal separation for satellite reflector configurations.
Its compact, rugged design allows the system to be adapted for various reflector geometries as needed. It’s an ideal choice for ground station or satellite communication platforms requiring dependable C-band performance.
