The AM001020LN-P1 is a broadband low noise amplifier (LNA) module designed for RF systems requiring low noise performance and stable gain across a wide frequency range. Operating from 10 MHz to 1000 MHz, this amplifier provides approximately 20 dB of gain with a low noise figure of 2.0 dB, making it ideal for enhancing signal sensitivity in VHF and UHF receiver applications. The module is internally matched to 50 ohms and features a compact, connectorized design for easy integration into communication systems, test equipment, and signal chain amplification.
General Specifications:
Device Type: Low Noise Amplifier (LNA Module)
Frequency Range: 10 MHz – 1000 MHz
Small Signal Gain: 20 dB (typical)
Noise Figure: 2.0 dB (typical)
P1dB Output Power: 10 dBm (typical)
Gain Flatness: —
Third Order Intercept (IP3): ~20 dBm (typical)
Input Return Loss: —
Output Return Loss: —
Input / Output Impedance: 50 Ohms (matched)
Bias Conditions: Vdd = +12 V

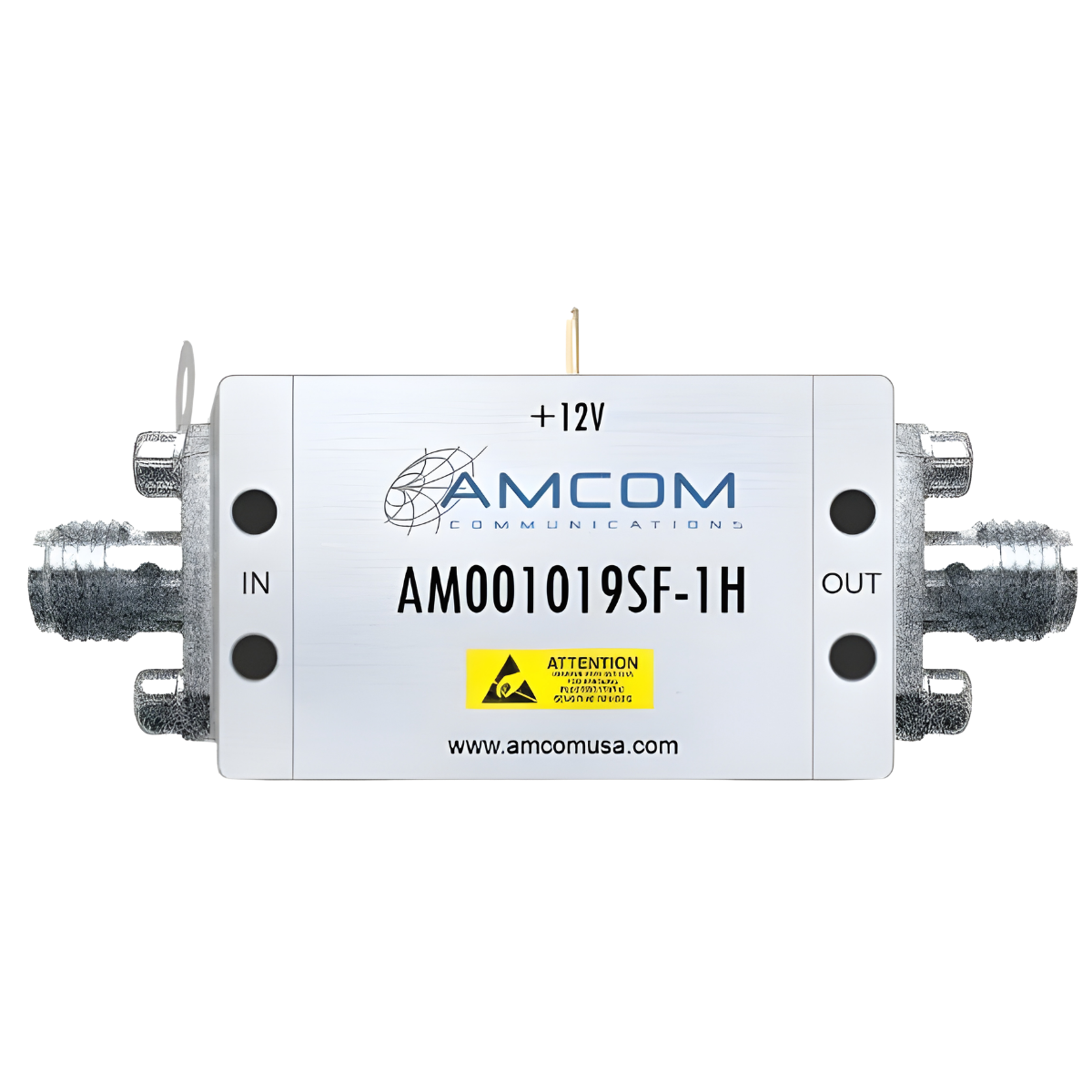

Package: Connectorized LNA Module with SMA interfaces
