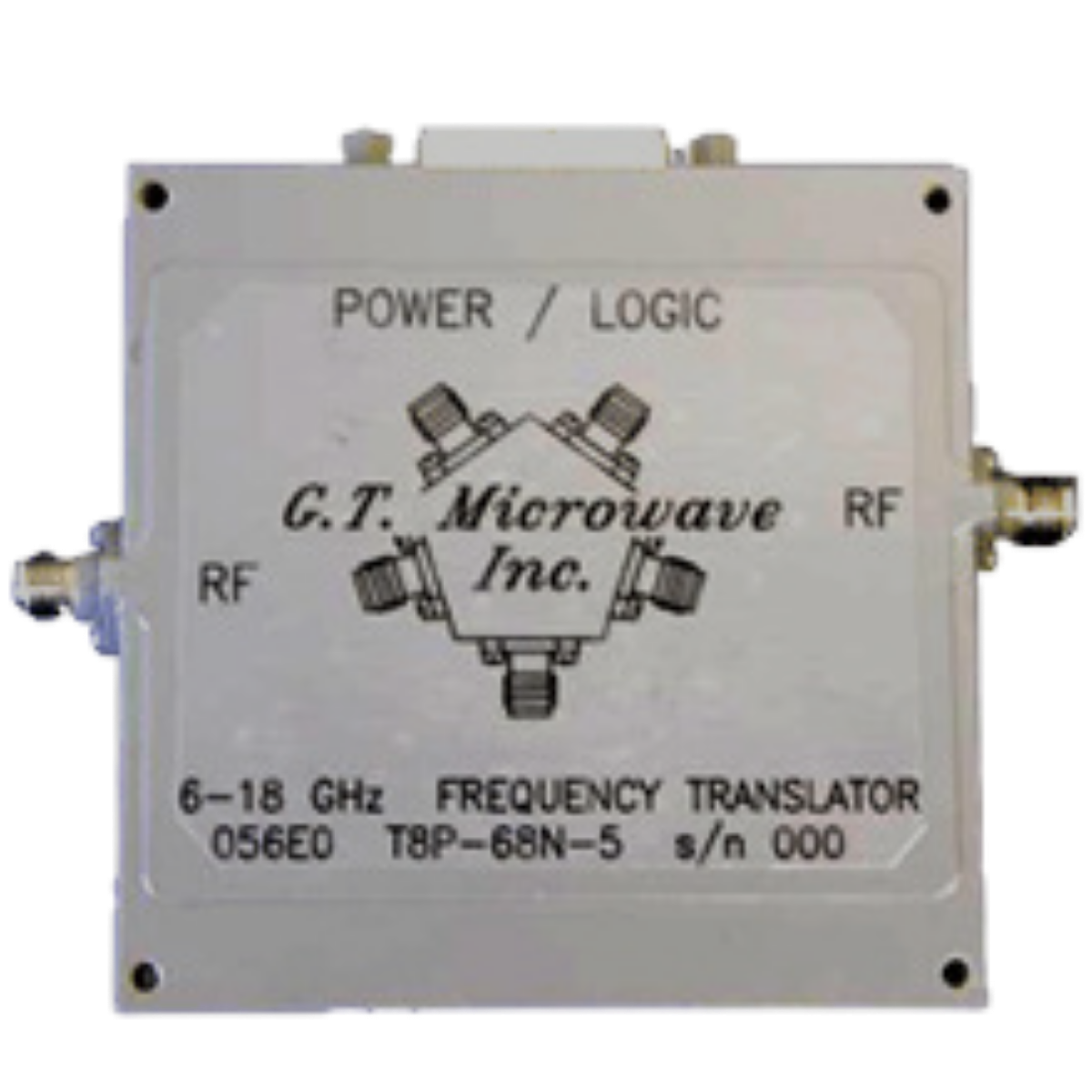

Frequency Translators are high-performance microwave components designed to provide precise frequency translation while maintaining excellent signal integrity across a wide operating range. Engineered with optimized phase shift linearity, high slew rate drivers, and minimized PM-to-AM conversion, these units deliver outstanding carrier and sideband suppression for demanding aerospace, defense, communications, and electronic warfare applications. Available in broadband and narrowband configurations, Frequency Translators offer reliable performance, fast switching speeds, and flexible digital or analog control options for a wide range of RF and microwave systems.

General Specifications:

Device Type: Frequency Translator

Frequency Range: 200 MHz to 22 GHz (up to 9:1 bandwidths available)

Narrowband Models: 22 GHz to 35 GHz with 10% bandwidth

Control Type: Digital TTL Compatible Logic (8-Bit Standard, up to 12-Bit available)

Phase Resolution: 1.41° LSB (256 discrete phase states)

Translation Rate: 0 to 500 kHz

Carrier Suppression: 25 dB Minimum

Sideband Suppression: 20 dB Minimum

Switching Speed: High-Speed State-to-State Switching

Power Requirements: ±12 VDC to ±15 VDC @ ±100 mA

Operating Temperature: -10°C to +65°C (Standard Temperature Compensated Models)

Temperature Stability: Typically ±0.17° and ±0.035 dB/°C

RF Connectors: SMA Female per MIL-C-39012

Optional Configurations: Analog Voltage-Controlled Models, Dual Function Translator/Phase Shifter Models

Low Phase Noise Option: Typical -132 dBc/Hz @ 10 kHz Offset

Environmental Capability: Available for MIL-E-16400 Range 1 and MIL-E-5400 Class 2 Requirements

Manufacturing Standard: Designed and Manufactured in the USA
