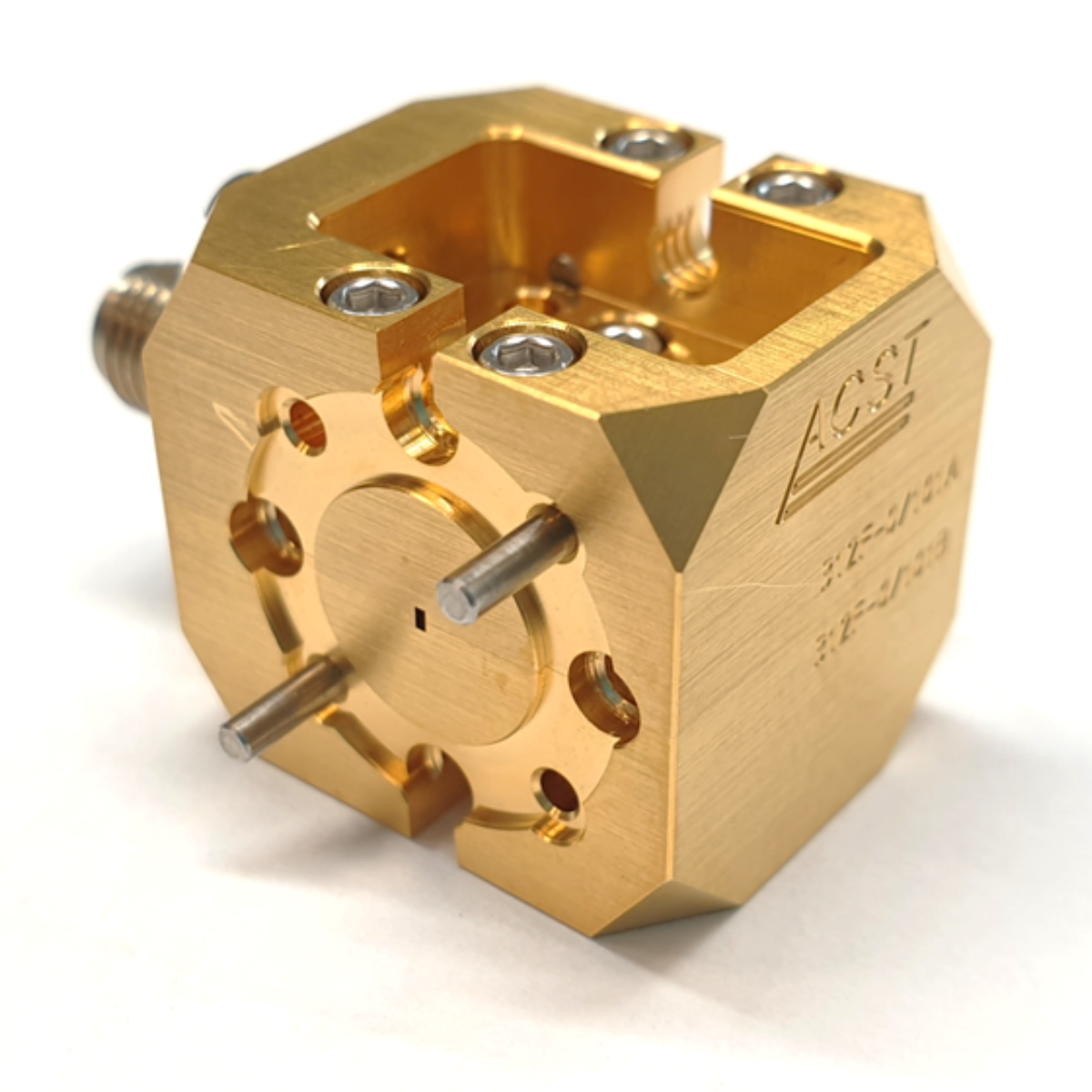

The ACST 310A is a high-performance subharmonic mixer designed for millimeter-wave systems operating in the 270–320 GHz range. Featuring WR-3.4 RF and WR-6.5 LO waveguide ports, the 310A delivers low DSB noise, wide IF bandwidth up to 40 GHz, and reliable signal conversion for advanced test, sensing, and communication applications. Its precision brass construction and gold-plated finish ensure excellent stability, durability, and low-loss performance.
General Specifications:
Mixer Type: Subharmonic Mixer
RF Input Port: WR-3.4 (UG-387/U-M)
RF Input Frequency Range: 270–320 GHz
RF Input Power: Maximum –10 dBm
LO Input Port: WR-6.5 (UG-387/U-M)
LO Input Frequency Range: 135–160 GHz
LO Input Power: +1.5 dBm (min) / +2 dBm (typ) / +7 dBm (max)
IF Output Port: K-Type Coaxial
IF Output Frequency Range: 0–40 GHz
DSB Noise Figure: 4.5 dB (min) / 5 dB (typ) / 6 dB (max)
Material: Brass
Finishing: Gold-Plated
