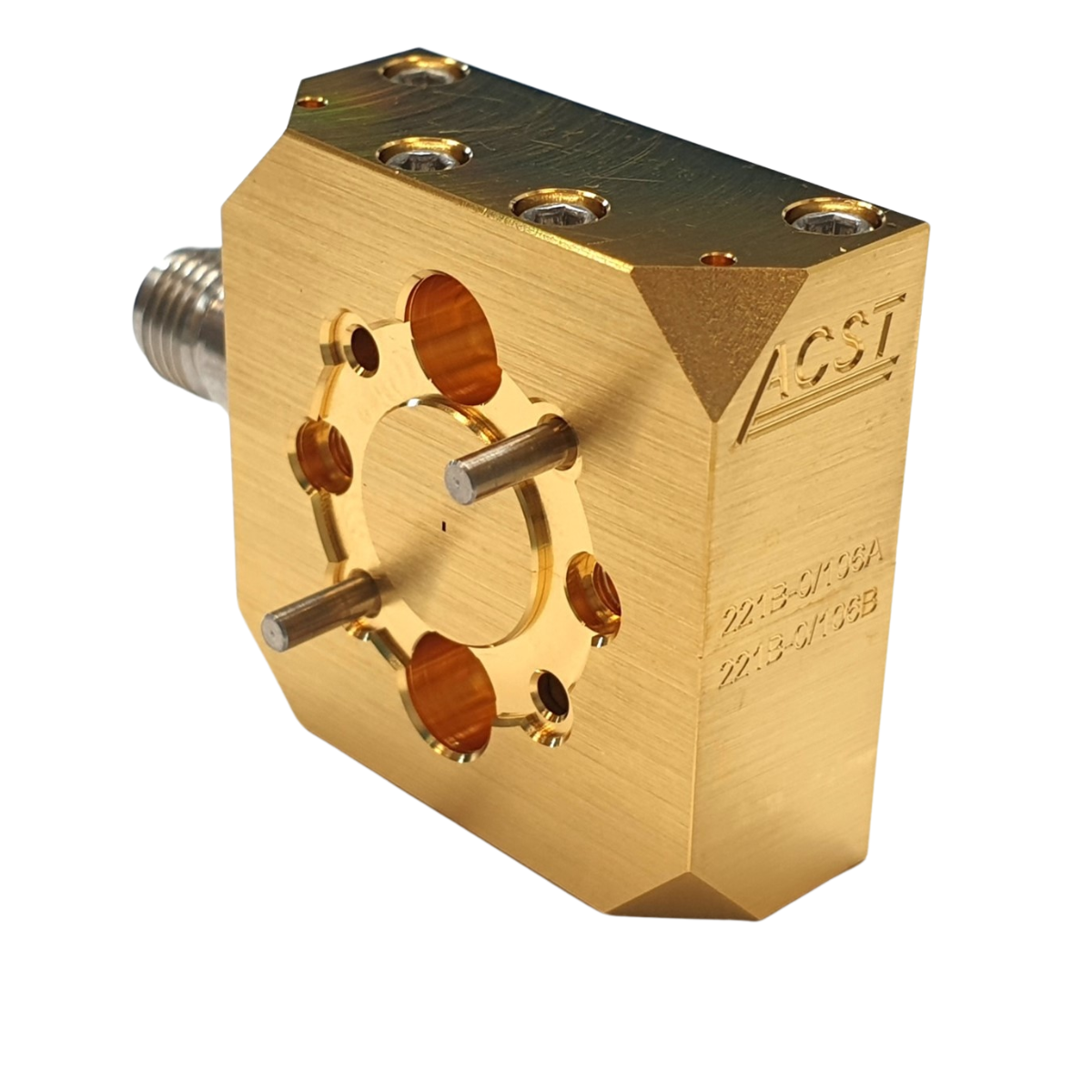

The ACST 213C is a high-efficiency, bias-controlled frequency tripler designed for millimeter-wave systems operating from 88 to 100 GHz input and delivering 265 to 300 GHz output. Based on ACST’s high-power balanced multiplier technology, the 213C provides flat frequency response, excellent harmonic suppression, and reliable output performance across the operating band. Bias control is required for optimal operation at specified input power levels. Its gold-plated brass construction ensures low RF loss and dependable performance for laboratory instrumentation, FMCW radar, active imaging, telecommunications, and LO source applications.
General Specifications:
Device Type: Frequency Tripler
Input Port (UG 387/U-M): WR-10
Input Frequency Range: 88–100 GHz
Input Power Range: +18 to +25.5 dBm (+24 dBm typical)
Output Port (UG 387/U-M): WR-3.4
Output Frequency Range: 265–300 GHz
Output Power Range: +10 to +18 dBm (+16.5 dBm typical)
Conversion Efficiency: 8–20% (16% typical)
Input VSWR: 1.45:1 to 1.9:1 (1.6:1 typical)
Material: Brass
Finishing: Gold-Plated
Bias Required: Yes (Bias Box 711B)
