MEDIUM POWER AMPLIFIERS

Compare manufacturer-listed electrical specifications. Confirm final mechanical configuration and availability through Impulse Sales.

2,204 models in Medium Power Amplifiers. Model images are representative unless verified otherwise.

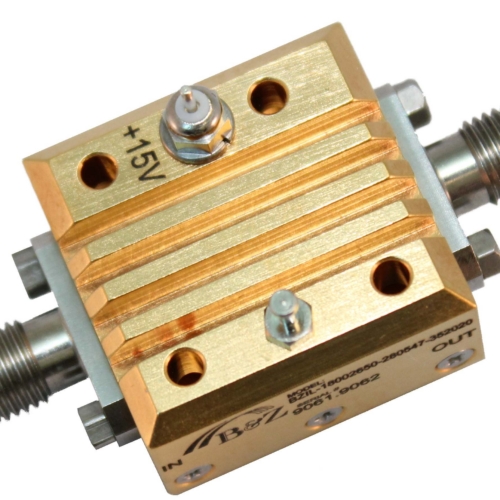

B&Z manufacturer-linked housing image; models may share photos

BZ2-02001800-60251923-152525

Frequency

2000 MHz–18000 MHz

Gain

19 dB

Noise figure

6 dB

P1dB

25 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ2-08001200-552718-102020

Frequency

8000 MHz–12000 MHz

Gain

18 dB

Noise figure

5.5 dB

P1dB

26 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ2-15301830-501518

Frequency

15300 MHz–18300 MHz

Gain

18 dB

Noise figure

5 dB

P1dB

15 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ23-0910-091550-132020

Frequency

9000 MHz–10000 MHz

Gain

50 dB

Noise figure

0.9 dB

P1dB

15 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ3-00101800-402020-152020

Frequency

100 MHz–18000 MHz

Gain

24 dB

Noise figure

4 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ3-0618-352024-152020

Frequency

6000 MHz–18000 MHz

Gain

24 dB

Noise figure

3.5 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ3-1218-302027-152323

Frequency

12000 MHz–18000 MHz

Gain

27 dB

Noise figure

3 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ3-17702120-302030-151313

Frequency

17700 MHz–21200 MHz

Gain

33 dB

Noise figure

3 dB

P1dB

23 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ3-17702120-502033-101313

Frequency

17700 MHz–21200 MHz

Gain

30 dB

Noise figure

5 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ3-17702120-502422-151515

Frequency

17700 MHz–21200 MHz

Gain

21 dB

Noise figure

5 dB

P1dB

24 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ32-01001800-232360-282323

Frequency

1000 MHz–18000 MHz

Gain

60 dB

Noise figure

2.3 dB

P1dB

23 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ4-01001200-201540-152020

Frequency

1000 MHz–12000 MHz

Gain

40 dB

Noise figure

2 dB

P1dB

15 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ4-0618-352034-152020

Frequency

6000 MHz–18000 MHz

Gain

34 dB

Noise figure

3.5 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ4-17702120-302034-051313

Frequency

17700 MHz–21200 MHz

Gain

32 dB

Noise figure

3.5 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ4-P518-502032

Frequency

500 MHz–18000 MHz

Gain

32 dB

Noise figure

5 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZ5-27503100-302041-151313

Frequency

27500 MHz–31000 MHz

Gain

40 dB

Noise figure

3 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZC-08000900-60212330

Frequency

8000 MHz–9000 MHz

Gain

30 dB

Noise figure

6 dB

P1dB

21 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZC-08100870-60242630

Frequency

8100 MHz–8700 MHz

Gain

30 dB

Noise figure

6 dB

P1dB

24 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZC-18002600-402040-202023

Frequency

18000 MHz–26000 MHz

Gain

40 dB

Noise figure

4 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZD

Frequency

200 MHz–2000 MHz

Gain

40 dB

Noise figure

1 dB

P1dB

15 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZH-1218-452520-152020

Frequency

12000 MHz–18000 MHz

Gain

20 dB

Noise figure

4.5 dB

P1dB

25 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZH33

Frequency

4000 MHz–8000 MHz

Gain

34 dB

Noise figure

1 dB

P1dB

15 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZHW-0104-H2

Frequency

1000 MHz–4000 MHz

Gain

40 dB

Noise figure

1 dB

P1dB

20 dBm

SPECIFICATIONS →REQUEST QUOTE →

B&Z manufacturer-linked housing image; models may share photos

BZHW-0812-H2

Frequency

8000 MHz–12000 MHz

Gain

45 dB

Noise figure

1.3 dB

P1dB

15 dBm

SPECIFICATIONS →REQUEST QUOTE →
